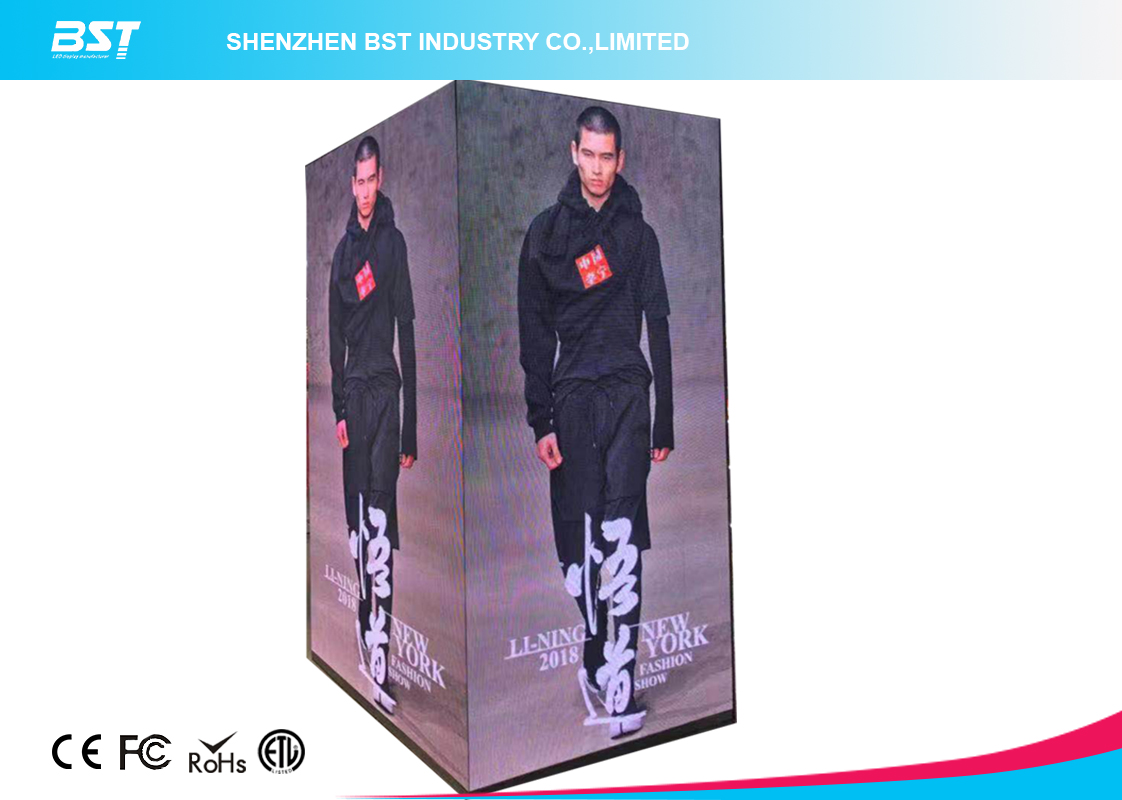

    281 Trillion Color Outdoor Advertising LED Display With Steel / Aluminum Panel

    Ask Lasest Price
    Brand Name : BST
    Model Number : OD-4
    Certification : CE,RoHs, FCC, ISO9001
    Price : USD500/sqm
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000sq.meter / Month
    Delivery Time : 10-20 days after receive payment
    • Product Details
    • Company Profile

    281 Trillion Color Outdoor Advertising LED Display With Steel / Aluminum Panel

    281 Trillion Color Outdoor Advertising LED Display With Steel / Aluminum Panel


    Outdoor Advertising LED Display Feature


    1) Outdoor Advertising LED Display is very easy to calculate the size of LED screen. It can be exactly 4*3m, 6m*4m, 8m*4.5m etc. ( 4m*3m is 4:3 ratio and 8m*4.5m is 16:9 ratio, perfect to show video )


    2) Ultra-thin and Super-light: only 50KG per cabinet of 960mmW*960mm and depth is only 130mm, can stand on floor independently.


    3) The appearance is very simple and elegant, looks very high end.


    4) With specially designed fast lock system, easy to install and dismantle


    5) .High refresh rate with NOVA control system, no scaning line when photographed.


    6) . Due to the light weight and low power consumption, it can reduces the labor cost, operating cost and transportation cost


    7) 14 bit color,65536 gray scale, showing very clear and vivid video and images.


    Outdoor Advertising LED Display Parameters


    SPECIFICATION
    OD-4OD-6OD-8
    Pixel ConfigurationSMD2727SMD2727SMD3535
    Pixel Density43,264 pixels/sqm22,500 pixels/sqm15,625 pixels/sqm
    Module Dimensions
    (WXH)(mm)
    250X250320X320256X256
    Panel Dimensions(mm)1000X1000X1501280X960X1501280X768X150
    No. of Modules Per
    Panel(WXH)
    4X44X35X3
    Physical Resolution
    of Module(WXH)
    52X5248X4832X32
    Physical Resolution
    of Panel(WXH)
    208X208192X144160X96
    Panel MaterialSteel / AluminumSteel / AluminumSteel / Aluminum
    Weight(sqm)65/4565/4565/45
    Processing16bit16bit16bit
    Colours281 trillion281 trillion281 trillion
    Contrast Ratio2,000:12,000:12,000:1
    Average Power
    Consumption
    360 W/panel360 W/panel360 W/panel
    Max Power
    Consumption
    900W/panel900W/panel900W/panel
    Refresh Rate>1920Hz>1920Hz>1920Hz
    Brightess≥6,500nits≥6,500nits≥6,500nits
    Horizontal Viewing
    Angle
    160°160°160°
    Vertical Viewing
    Angle
    140°140°140°
    Expected Lifetime100,000Hrs100,000Hrs100,000Hrs
    ServicingFront/RearFront/RearFront/Rear
    IP Rationg
    (Front/Rear)
    IP 65/IP54IP 65/IP54IP 65/IP54
    Operation Temp/
    Humidity
    —20℃-50℃ /10%-90%—20℃-50℃ /10%-90%—20℃-50℃ /10%-90%
    Storage Temp/
    Humidity
    —20℃-50℃ /10%-90%—20℃-50℃ /10%-90%—20℃-50℃ /10%-90%

    Outdoor Advertising LED Display Application:

    Commercial advertising,Stadium perimeter, such as banks,schools, telecommunications, mobile media, night club, business establishments, customs, stadiums, studio, stock exchange centers, bus station, shopping malls, railways, airports, harbors, etc;


    Our Services

    1. Provides all LED display relative solution, like installation drawing etc.

    2. Have free training about how to use and maintain LED display with our professional engineer.

    3. Provide free spare parts for future urgent need.

    4. Technical Support: We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company such as accommodation & round-trip ticket.
    5. Professional engineer in service after sales, 18/7 for any inquiry.

    6. All other service request will be considered in BST , please contact with sales in details.

    FAQ

    Why choose BST

    1. Our LED display signs have the ISO9001:2000 Quality System Certification;
    2. CE & RoHS Certification of our LED display signs;
    3. Excellent Technical Innovation;
    4. Contract Performance and Credibility;
    5. Price performance ratio;
    6. Modular LED display screens;
    7. LED displays with high brightness LED's;
    8. High ecperiences and know-how LED display products;
    9. Post sale assistance (after sale);
    10. Our LED display screens have a warranty up to 1-3 years (depending on configuration).
    11. Personalized sale and less than 24 hours response on all inquiries;
