    360 Degree Flex LED Video Wall , Waterproof Flexible LED Panel 1920Hz

    Ask Lasest Price
    Brand Name : BST
    Model Number : FL-6
    Certification : CE,FCC, CCC, Rohs,ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000sqm per month
    Delivery Time : 10 - 20 days after receive payment
    • Product Details
    • Company Profile

    360 Degree Flex LED Video Wall , Waterproof Flexible LED Panel 1920Hz

    360 Degree Flex LED Video Wall , Waterproof Flexible LED Panel 1920Hz

    Flex LED Video Wall Quick Detail:

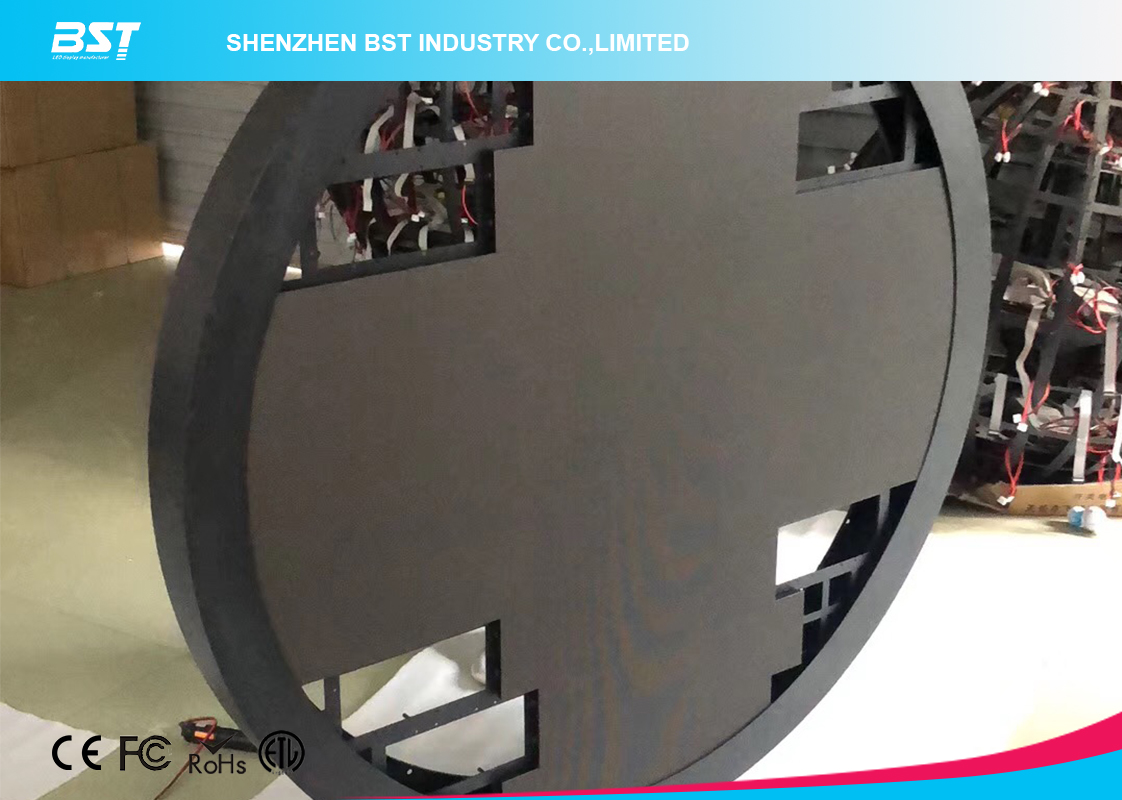

    1. LED Modules with special Design For Curved or 360 Degree LED Display
    2. LED Modules with MBI5124 Driving IC with High Refresh Rate
    3. SMD LEDs with Gold Wire for Best Color Uniformity


    Flex LED Video Wall Features


    Flexible led display is super thin, very light weight and most flexible to design shapes, effects, in any types, arc in any angles. With repeating curving, it won't break LEDs as well design of mask covers.
    1.Module with small-unit and flexible design, makes possibility of more complicated shapes for the video show.
    2.Assembling screen with flexible led modules directly, saving time and effort, easy operation.
    3.Magnet connection, easy to assemble & disassemble, it is frontal service maintenance.
    4.No cabinet metal frame, drastically deducting the screen weight. we can design any shape of structure as you need.
    5.Strict quality control and long-term application experience verified the stability and excellent performance by using Epistar LED, and MBI5124 Driving IC for high refresh rate and performance.

    Flex LED Video Wall Description:

    1. High brightness 3 in 1 LED SMD lamps with best plastic package suite are not easy to be damaged and ensures the best viewing angle.
    2. Constant current chip driving IC MBI5124 to reduces the power consumption and prompts the stability, Simple modular design for easy maintanence.
    3 Neat appearance, light weight, small size and safe 5V low voltage power supply system all make the module more attractive.
    4. Due to its locating holes and 4 in bracket design, it can be used on indoor curved led display and circle led screen.
    5. Besides,high definition effect comes with color uniformity and soft color is suitable for indoor close range viewing.

    Flex LED Video Wall Applications:

    Widely applied in shaped stage background / exhibition / shopping mall etc.

    Flex LED Video Wall Specifications:

    SPECIFICATION
    FL-2FL-4FL-6
    Physical Pitch2.5mm4mm6.66mm
    Pixel ConfigurationSMD2121SMD2121SMD3528
    Pixel Density160,000pixels/sqm62,500 pixels/sqm22,500 pixels/sqm
    Module Dimensions
    (WXH)(mm)
    240X120240X120320X160
    Panel Dimensions(mm)CustomizedCustomizedCustomized
    Physical Resolution
    of Module(WXH)
    96X4860X3048X24
    Weight8.2kg/sqm8.2kg/sqm8.2kg/sqm
    Processing16bit16bit16bit
    Colours281 trillion281 trillion281 trillion
    Contrast Ratio4,000:14,000:14,000:1
    Average Power
    Consumption
    9W10W10W
    Max Power
    Consumption
    12W13W13W
    Refresh Rate>1920Hz>1920Hz>1920Hz
    Brightess≥1,000nits≥1,500nits≥1,500nits
    Driving Method1/401/81/8
    Horizontal Viewing
    Angle
    160°160°160°
    Vertical Viewing
    Angle
    140°140°140°
    Expected Lifetime100,000Hrs100,000Hrs100,000Hrs
    ServicingFrontFrontFront
    IP Rationg
    (Front/Rear)
    IP 40IP 40IP 40
    Operation Temp/
    Humidity
    —20℃-60℃ /10%-60%—20℃-60℃ /10%-60%—20℃-60℃ /10%-60%
    Storage Temp/
    Humidity
    —30℃-60℃ /10%-60%—30℃-60℃ /10%-60%—30℃-60℃ /10%-60%
    CertificationCCC,CE,ETL,ROHSCCC,CE,ETL,ROHSCCC,CE,ETL,ROHS
