    Super Brightness Front Service LED Display For Outdoor Advertising Field

    Ask Lasest Price
    Brand Name : BST
    Model Number : ODF-4
    Certification : CE, RoHS, FCC, ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000sq.meter / Month
    Delivery Time : 10-20 days after receive payment
    • Product Details
    • Company Profile

    Super Brightness Front Service LED Display For Outdoor Advertising Field

    Super Brightness Front Service LED Display For Outdoor Advertising Field


    Front Service LED Display Quick Detail:


    1. Wide Viewing Angle 140 degree (H/V)

    2. Waterproof IP65

    3. Super brightness.

    4. High cost effective

    5. Front and rear cabinet access maintenance

    6. 100% fully test


    Front Service LED Display Characteristics:


    1, High quality and high performance

    2, Supplied by high strictly selected SMD3535 LED

    3, Perfect color blending and comfortable visual effect

    4, 2 years warranty and long term tech-support

    5, Excellent uniformity and no mosaic

    6, Available models: P6, P8, P10, P16


    Front Service LED Display Applications:

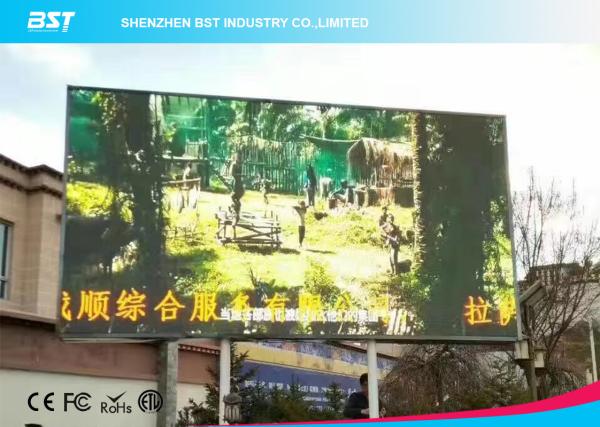

    Outdoor full color digital billboards are very popular in outdoor advertising field. This type digital

    billboard is widely used outdoor plaza, storefront, outdoor building,stadium,shopping mall,cross road,highway,

    airport etc;


    Front Service LED Display Specifications:

    SPECIFICATION
    ODF-4ODF-6ODF-8ODF-10
    Physical Pitch4.81mm6.67mm8mm10mm
    Pixel ConfigurationSMD1921SMD2727SMD3535SMD3535 / DIP346
    Pixel Density43,264 pixels/sqm22,500 pixels/sqm15,625 pixels/sqm10,000pixels/sqm
    Module Dimensions
    (WXH)(mm)
    250X250320X320256X256320X320
    Panel Dimensions(mm)1000X10001280X9601280X9601280X960
    No. of Modules Per
    Panel(WXH)
    4X44X34X34X3
    Physical Resolution
    of Module(WXH)
    52X5248X4840X4032X32
    Physical Resolution
    of Panel(WXH)
    208X208192X144160X120128X96
    Panel MaterialCold SteelCold SteelCold SteelCold Steel
    Weight per panel
    (kg)
    65797979
    Processing16bit16bit16bit16bit
    Driving Method1/9 scan1/4 scan1/4 scan1/4scan or 1/2scan
    Average Power
    Consumption
    250 W/panel360 W/panel360 W/panel360 W/panel
    Refresh Rate>1920Hz>1920Hz>1920Hz>1920Hz
    Brightess≥5,500nits≥6,500nits≥6,500nits≥6,500nits
    Horizontal Viewing
    Angle
    140°160°160°160° /110°
    Vertical Viewing
    Angle
    140°140°140°140° / 70°
    Expected Lifetime100,000Hrs100,000Hrs100,000Hrs100,000Hrs
    IP Rationg
    (Front/Rear)
    IP 65/IP54IP 65/IP54IP 65/IP54IP 65/IP54
    Working Temperature—20℃-50℃/—40℃-60℃—20℃-50℃ /10%-90%—20℃-50℃ /10%-90%—20℃-50℃ /10%-90%
    Working Humidity10%-90%RH/10%-85%RH—20℃-50℃ /10%-90%—20℃-50℃ /10%-90%—20℃-50℃ /10%-90%
