4.81 Pixel Die Casting large led display board High Contrast , Large Viewing Angle

ShenZhen BST Industry Co., Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 4.81 Pixel Die Casting large led display board High Contrast , Large Viewing Angle from wholesalers

    Buy cheap 4.81 Pixel Die Casting large led display board High Contrast , Large Viewing Angle from wholesalers
    • Buy cheap 4.81 Pixel Die Casting large led display board High Contrast , Large Viewing Angle from wholesalers
    • Buy cheap 4.81 Pixel Die Casting large led display board High Contrast , Large Viewing Angle from wholesalers
    • Buy cheap 4.81 Pixel Die Casting large led display board High Contrast , Large Viewing Angle from wholesalers
    • Buy cheap 4.81 Pixel Die Casting large led display board High Contrast , Large Viewing Angle from wholesalers

    4.81 Pixel Die Casting large led display board High Contrast , Large Viewing Angle

    Ask Lasest Price
    Brand Name : BST
    Model Number : BST-IRD-4.81
    Certification : CE,RoHs, FCC, ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000sq.meter / Month
    Delivery Time : 10-20 days after receive payment
    • Product Details
    • Company Profile

    4.81 Pixel Die Casting large led display board High Contrast , Large Viewing Angle


    4.81 Pixel Die Casting large led display board High Contrast , Large Viewing Angle


    Products Feature

    * Die-casting aluminum, secure and nice in constitution.

    * High quality brand LED chip and high anti- ESD capacity ;

    * No fans, mute when operation,and good heat dissipation

    * Dustproof, IP43.

    * SMD technology , large viewing angle (H >140°H ; V >140°W) and high flatness ;

    * High refresh rate and high gray depth.

    *Using latest driving IC technology ,low brightness and high grey level , high refresh rate ;

    * Completely black LED with high contrast.

    *Can be fastly built-up and dismantled with fast locks on each panel .

    *Energy conservation and environment protection,saving15% of energy compared with traditional cabinets;

    * Standard cabinet size is 500mm x 500mm and 500mmX1000mm.

    * Fine and clear picture;

    * Exactly connected and easy to install and dismount.



    4.81 Pixel Die Casting large led display board High Contrast , Large Viewing Angle

    Parameters of BST-IRD-3.91


    LED Display Series

    BST-IRD-3

    BST-IRD-4

    BST-IRD-6

    Pixel Pitch(mm)

    3.91

    4.81

    6.25

    Pixel Density(dots/m2)

    65536

    43264

    25600

    Avr Power Consumption (W/M2)

    ≤500

    ≤500

    ≤500

    Brightness Max(cd/m2)

    ≥1200

    ≥1200

    ≥1500

    Color Temperature(after calibration)K

    6500

    6500

    6500

    Cabinet Material

    Die Casting Aluminum

    Die Casting Aluminum

    Die Casting Aluminum

    Weight(kg/Panel)

    14

    14

    14

    Working Humidity

    10%-95%

    10%-95%

    10%-95%

    Driving Method

    1/16

    1/16

    1/8

    LED Type

    SMD2121

    SMD2121

    SMD3528

    Horizontal/Vertical Viewing Angle(º)

    H140º/V140º

    H140º/V140º

    H140º/V140º

    Recommended Viewing Distance(m)

    1--100

    1-100

    1--100

    Power Supply

    Single power

    Single power

    Single power

    Refresh Rate(Hz)

    ≥1920

    ≥1920

    ≥1920

    Weight(kg/m2)

    28

    28

    28

    Grey Scale(bit)

    R’G’B 16bit

    R’G’B 16bit

    R’G’B 16bit

    Frame Rate(Hz)

    50/60

    50/60

    50/60

    Life Time(H)

    ≥100000

    ≥100000

    ≥100000

    Protection

    Indoor

    Indoor

    Indoor

    LED Chip

    Epistar

    Epistar

    Epistar

    Contrast

    4000:1

    4000:1

    2000:1

    Protection

    IP40

    IP40

    IP40

    Max Power Consumption(W/M2)

    600

    600

    600

    Working Temperature

    -20C°/40C°

    -20C°/40C°

    -20C°/40C°

    Module Size(W*H)(mm)

    250X250

    250X250

    250X250

    Driving Chip

    MBI5124

    MBI5124

    MBI5124

    Control Input

    DVI/HDMI/HDSDI

    DVI/HDMI/HDSDI

    DVI/HDMI/HDSDI

    Max Hanging(Vertical)

    ≥200kg

    ≥200kg

    ≥200kg



    4.81 Pixel Die Casting large led display board High Contrast , Large Viewing Angle


    4.81 Pixel Die Casting large led display board High Contrast , Large Viewing Angle


    4.81 Pixel Die Casting large led display board High Contrast , Large Viewing Angle

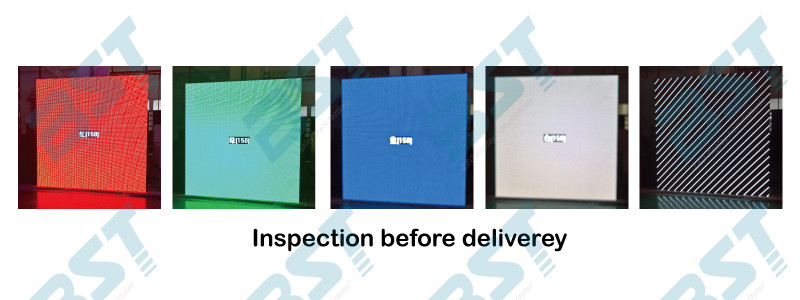

    Testing


    4.81 Pixel Die Casting large led display board High Contrast , Large Viewing Angle

    4.81 Pixel Die Casting large led display board High Contrast , Large Viewing Angle

    Controller connection and Accessory

    4.81 Pixel Die Casting large led display board High Contrast , Large Viewing Angle


    4.81 Pixel Die Casting large led display board High Contrast , Large Viewing Angle


    Application:

    Entertainment events,Commercial advertising,Stadium perimeter, such as banks,schools, telecommunications, mobile media, night club, business establishments, customs, stadiums, studio, stock exchange centers, bus station, shopping malls, railways, airports, harbors, etc;


    Packing and shipment


    4.81 Pixel Die Casting large led display board High Contrast , Large Viewing Angle

    4.81 Pixel Die Casting large led display board High Contrast , Large Viewing Angle


    Workshop


    4.81 Pixel Die Casting large led display board High Contrast , Large Viewing Angle


    After-Sale service

    1. 1-2 years warranty.

    2. BST assists with training and technical support for the customer in the factory, if required. You can also send your engineer to our factory at any time for LED display training. This service is free of charge.

    3. Customer satisfaction tracking report.
    4. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours
    5. Special service for big project, such as TV station


    Trade Terms

    1.Payment:T/T,30% deposits before production,70% balance to be paid before dleiverying


    2.Shipping freight are quoted under your requests


    3.Shipping port:ShenZhen,Mainland China


    4.MOQ:1pc/sqm


    Why Choose Us?


    1) Innovative LED Screen Manufacturer for indoor&outdoor rental events and fixed projects.


    2) Strong R&D team ensures products with nice features.


    3) BST mainly focuses on achieving customers' innovative ideas by customizing lead screens.


    4) Wide Applications: TV Station, studios, auto shows, concerts, clubs, discos, building facade, exhibitions, celebrations, etc.
