    P5mm Taxi Advertising Screens , Waterproof IP65 Taxi Top LED Display 192 X 64 Dot Resolution

    Ask Lasest Price
    Brand Name : BST
    Model Number : BST-TTF-5
    Certification : CE,RoHS,CCC
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000sqm/month
    Delivery Time : 10-20 days after receive payment
    • Product Details
    • Company Profile

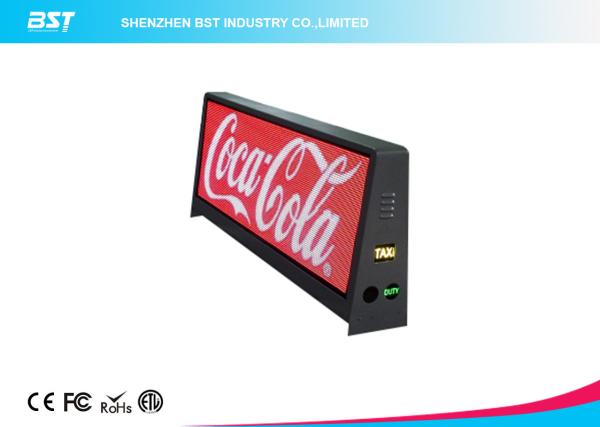

    P5mm Taxi Advertising Screens , Waterproof IP65 Taxi Top LED Display 192 X 64 Dot Resolution

    P5mm Taxi LED Display Waterproof IP65 Full Color 192 x 64 dot Resolution


    Product Feature:
    1, Waterproof, rust-proof, dust-proof, anti-static, anti-mildew
    2. Well Designed Cooling Syetem
    3. 3G/4G High Speed data Transferring
    4. Easy maintenance& IP65 design&long Lasting Display
    5. Ultral slim 75mm deepth on the top, ultral lightweight 18kg per pcs only
    6, Organized internal wire harnessing

    7.Intelligent Power Supply Management

    8.Quick installation and maintenance

    9.Lower Power Consumption fit to battery of Taxi,the average power consumption is 180W

    10.Made of high quality LEDs,

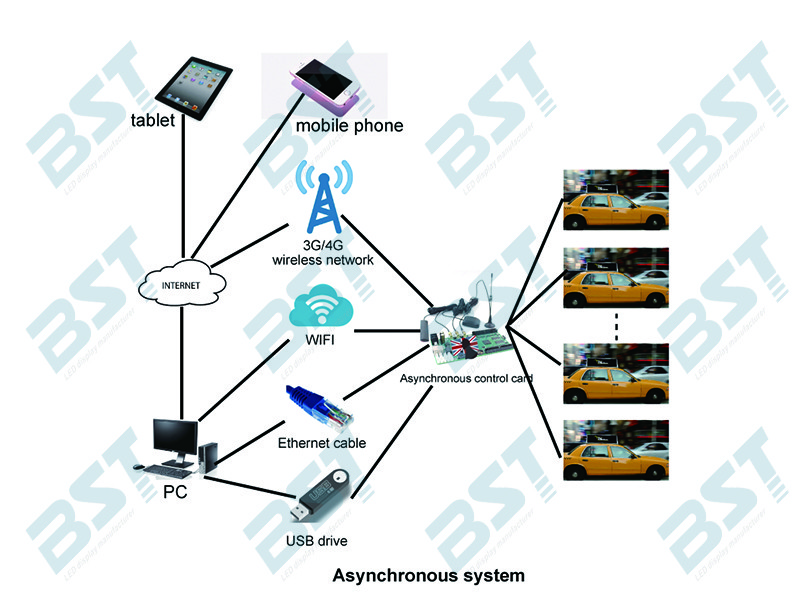

    11.Multiple control Options 4G,3G or USB, WIFI, Ethernet cable supported to updated the program
    12. over-temperature/over-current/ over-voltage protection

    13.High reliability. 24h/7day advertising all the time and all weather conditions

    14.High light , for the day and night for the billboard taxi.

    15.Support temperature and humidity display, brightness automatically adjustable


    Parameters of BST-TTF-5


    Display Specification
    1Pixel pitch5 mm
    2Resolution40,000 dots/sq.m
    3Display size (each side)W 0.96 × H 0.32 = 0.3072 sq.m
    4Screen resolution (each side)W 192 × H 64 = 12,288
    5Total module quantity (each side)W 3 × H 2 = 6 pcs
    6Total cabinet quantity1 pc
    7Cabinet size (including frame)1100mm( L) x 410mm(H) X W:164mm(bottom)/ 99mm (top)
    8Power consumption (Max.)280 W
    9Power consumption (Ave.)180 W
    10Maximum Current24 Amp
    LED Module Specification
    11LED composition1R 1G 1B
    12LED typeSMD2727
    13Module resolutionW 64 × H 32
    14Module sizeW 320 × H 160 mm
    15Driving method1/8 scan constant current
    Cabinet Specification
    16Cabinet materialAluminum cabinet with frame
    17Cabinet colorSilver
    18Cabinet weightabout 18 kg
    19FlatnessLess than 1mm juncture
    Optical Parameters
    20Brightness>5,500 nits/sqm
    21Viewing angleHorizontal 140°, vertical 140°
    22Minimum viewing distance5 m
    Power Supply
    23Power supplyDC 9 ~ 36V
    24Output voltageDC 12V
    Control System
    25Control cardSheenled
    26Memory4G
    27Control method3G/4G/WIFI/USB/Ethernet cable
    28Refresh rate480-1500 HZ
    29Refresh frame frequency60~85 HZ
    Formats Supported
    30VideoAVI, WMV, MPG, MOV, DAT, VOB, MP4, FLV
    31AnimationGIF, SWF
    32PictureJPG, BMP, WMF
    Reliablity
    33Protection gradesIP65
    34Work temperature-20~+60ºC
    35Humidity(RH)10~90%
    36LED Life spanMore than 100,000 hours
    37MTBF10000 hours
    38Out of controll dot rateLess than 2/10,000

    Application:

    Taxi top advertising to show Animation, commercial advertising, customs video, graphics etc;

    1.Our Service


    1)Your inquiry related to our products or price will be replied in 24hrs


    2)OEM&ODM,any your customized lightings we can help you to design and put into product


    3)Distributoership are offered for your unique design and some our current models


    4)Protection of your sales area,ideas of design and all your private information


    5)Top Quality+Reasonable Price+Responsible After Service=Successful & Win


    2.Trade Terms


    1.Payment:T/T,30% deposits before production,70% balance to be paid before dleiverying


    2.Shipping freight are quoted under your requests


    3.Shipping port:ShenZhen,Mainland China


    4.MOQ:1pc
