    Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board

    Ask Lasest Price
    Brand Name : BST
    Model Number : BST-OA-16
    Certification : CE, RoHS, CCC, IP65
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000sq.meter / Month
    Delivery Time : 10-20 days after receive payment
    • Product Details
    • Company Profile

    Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board

    Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board


    Products Description:


    1. Error detection and monitoring:it can monitor the inner temoerature,voltage,cooling fans etc and error detection automatically.

    2. Energy saving:low electric current,high-brigh lamps,equipped with PFC swithing power supply,save 30% electricity.

    3. Color correction:support dot-to-dot correction,guarantee the consistence of LED color and brightness,No chromatic aberration for new screens3..

    4.. Good LEDs:use DIP346 LEDs,it has excellent performance in antistatic ability and UV protection;Waterproof grade IP65,all weather available.

    5. Dual back-up:both power supply and system dual back-up are optional,reliable performance.

    6. High refresh rate,high gray level:it can reach 16bit by using PWM driving IC,refresh rate is more than 1000HZ,the gray level is still high even under the condition of low brightness

    7. Front maintain and easy operation

    8.Long life time > 100,000 hours

    9.Clear vivid image quality

    10.Can adjust the brightness auotomatically

    11. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive

    12. Good heat dissipation capability because of the unique design of vent fan.


    P16 outdoor advertising led display

    Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board

    Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board


    Aging Test


    Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board

    Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board

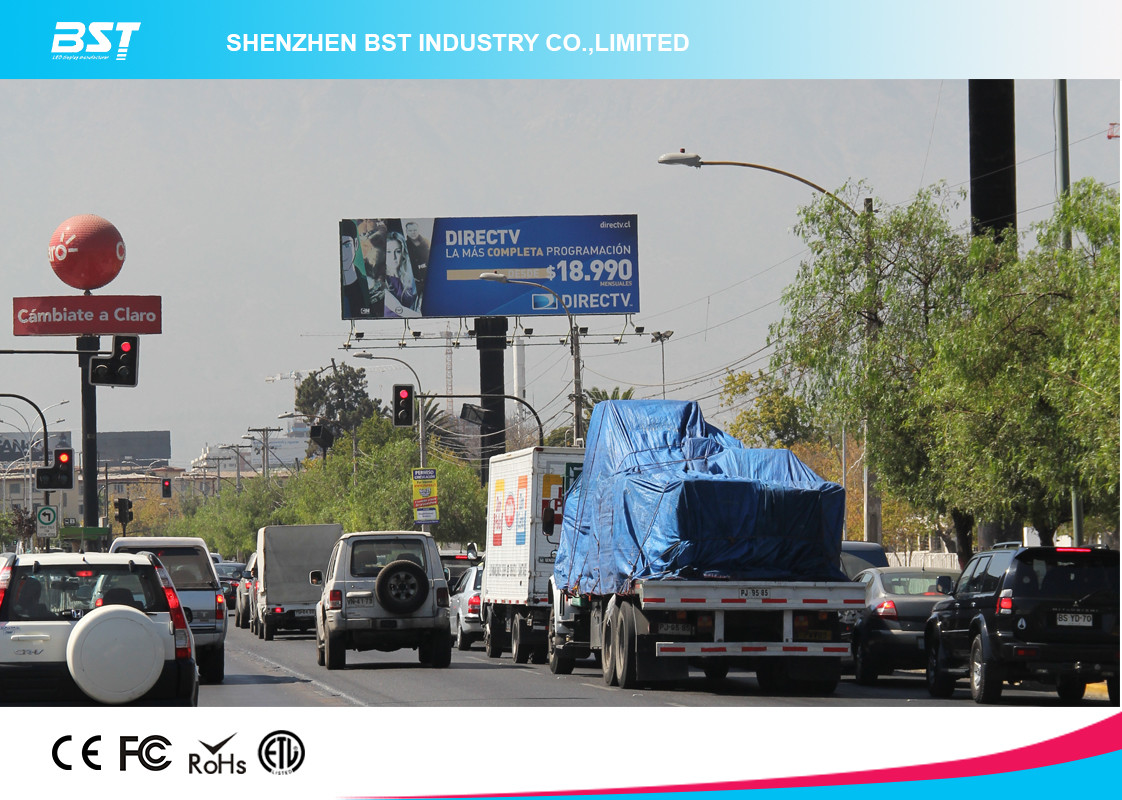

    Application:


    Stadium perimeter,Commercial advertising, business establishments,mobile media,, such as banks, stock exchange centers, telecommunications, customs, bus station, schools,stadiums, studio, shopping malls, airports, harbors,railways,etc;


    Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board


    Specification:


    LED Module Parameters

    ItemParameter
    Model numberP16
    Module size256x128mm
    Pixel pitch16mm
    Pixel density3906dots/m2
    Pixel configuration1R1G1B
    Package modeDIP346
    Pixel resolution16dots(W)*8dots(H)
    Max Power20W
    Module thickness30mm
    Weight0.4kg
    Drive typeconstant drive
    scan modeStatic Drive
    Port typehub75
    Brightness of white balance≥7000cd/m2

    Cabinet Parameters

    Dimension1024mm*768mm
    Monomer Module Number24
    Power supply5V/60A*3pc
    Thermal dischargeanto
    Pixel per cabinet64*48dots
    Best viewing distance16M~200M
    Best viewing angle120°(W)60°(H)
    Temperature

    storage:-35°C~+85°C

    working:-20°C~+50°C

    Relative humidity10%~95%
    Thickness160mm

    Screen Parameters

    PowerWorking voltageAC220V/AC110V±10%
    Average Power consumption250W/m2
    Max Power consumption≤550W/m2
    Current≤20mA(single LED)
    Control systemCPUPentium4 or above P4
    Operation systermWIN98/2000/NT/XP/WIN7
    Control methodSynchronization
    Main technical parameterDriving deviceConstant drive IC
    Refresh frequency≥1500HZ
    Grey scale/colors4096 gray level/16.7M colors
    MTBF≥10000hours
    Fire rategrade one
    Display Mode≥800*600/1024*768

    Packing and shipment

    Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board

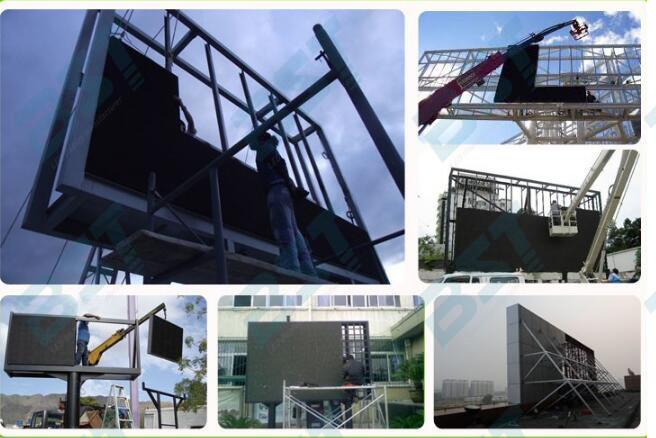

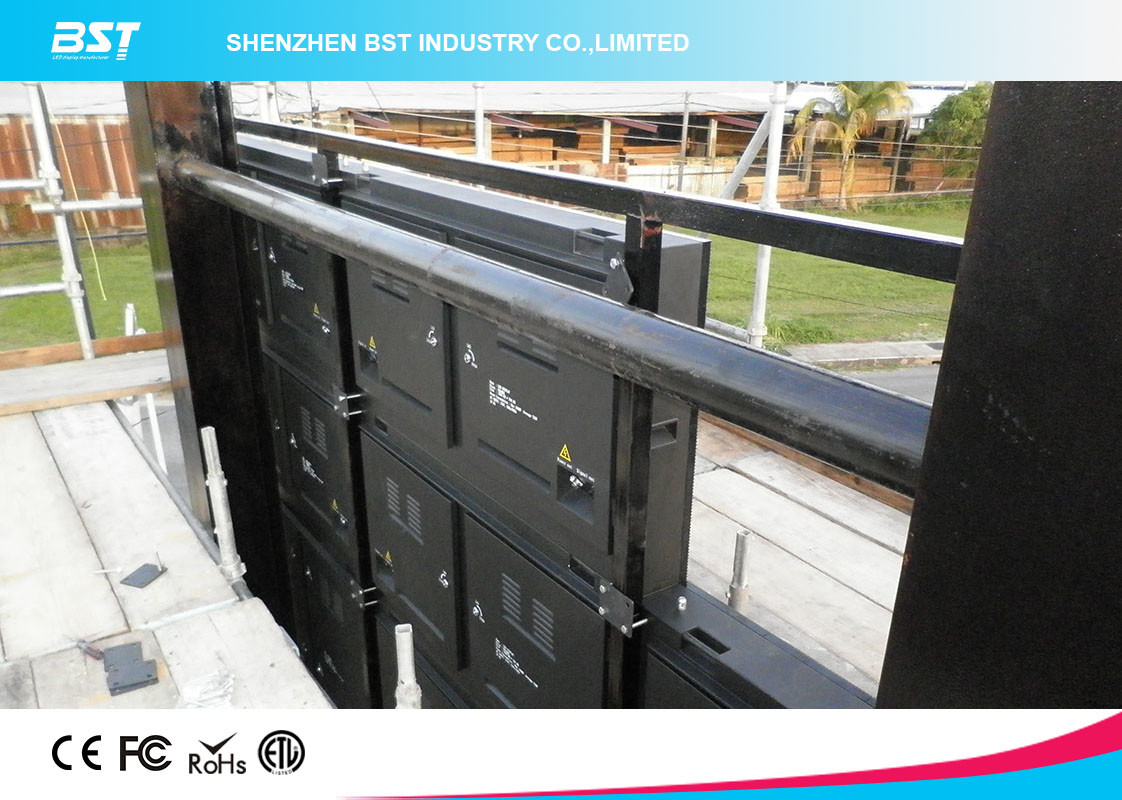

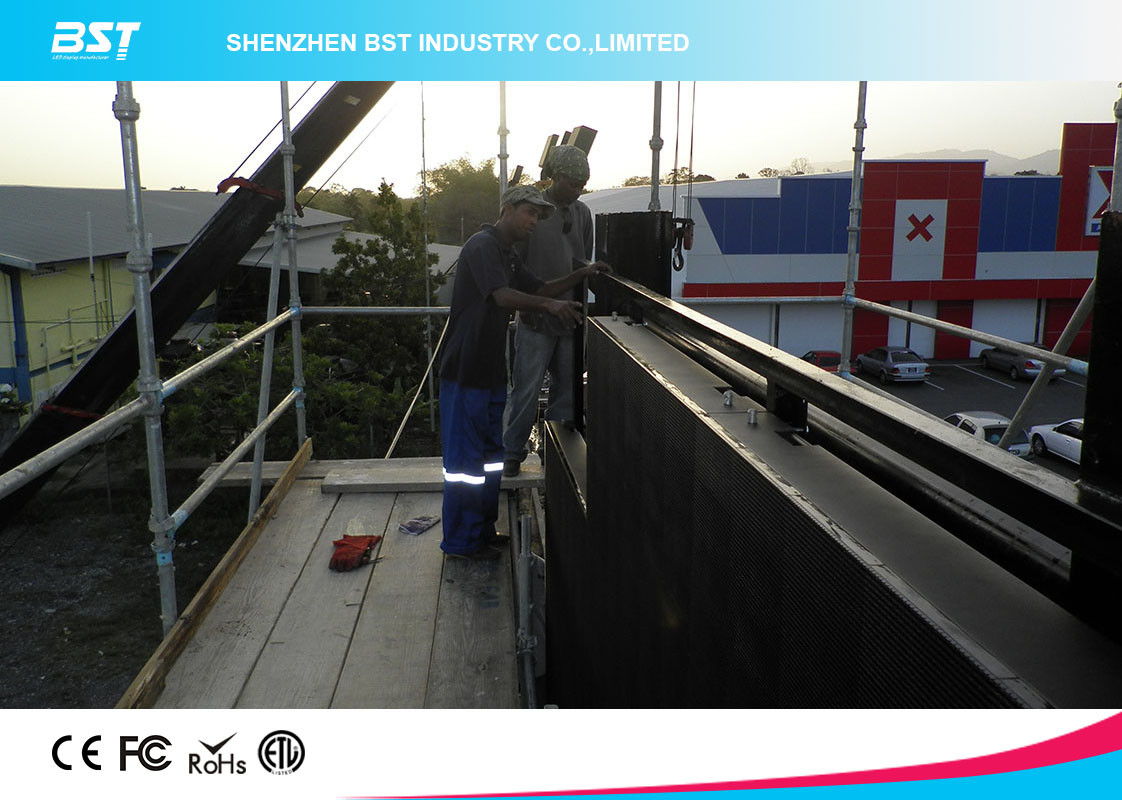

    Installation
    Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board
    Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board
    Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board
    Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board
    Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board
    Our Services

    TrainingFree of charges;In our workshop, we provide all the training including process of operation, installation, maintenance, system set up, etc.
    Warranty

    1, 2years, .From beginning of installation finished the led display, During it , we will be responsible for all the quality problem.

    2, After the completion of the project, we will conduct life maintenance of the system continuously and update the and software.

    3, For the hardware equipment, we only collect expenses on components.

    Guarantee

    1, All the life time for Technology support , system update ,maintenance .

    2, We guarantee that the equipment we provide are brand new, complete and unused before delivery .

    Remark


    1. We are manufacturer of LED display. We only provide the Screen, Cabinet and module,

    but do not take charge for the installation in overseas; Technical support is available.

    2. The above offer included the cabinet, power supply, power cord,and other basic components; etc.

    3. The above offer do NOT included the delivery, insurance, installation and debugging cost;

    4. Packing with Ply-wood box, or Carton ;

    5.Problems during use.

    some spare parts for you, once the screen get problems, please follow up below steps to solve it:

    Step1: Take some pictures about the working status of the screen;

    Step2: Replace the broken cabinet by the new cabinet;

    Step3: Contact with us, and send the pictures to us, we will help you to analyze the problems.

    Step4: If it is necessary, please post it to our company, we will maintain it for you as soon as possible, and then deliver it to you.


    FAQ

    Q1,How to arrange payment?

    Our payment terms in usually is T/T payment,for sample and small order,Western union,Paypal or Moneygram also be acceptable


    Q2,What is our warranty?

    Our warranty from 5year to 1year basis on different type led screen,In usually every screen we will ready more extra led screen moduless as spare modules,if some modules happen fails,you can replace the fail modules by our spare modules,When all the spare modules use out,You can send back these modules to us for repair,and we will send to you after repair and testing&aging well


    Q3,How to be our distributor?

    To be our distributor,We can share our profit together with you in every year,Also we can send our engieer or sales to your compay to support your business,also for led screen after-service,We will together with you to the after-service in the whole led screen life time


    Q4, How to maintence led screen?

    In usually every year to maintence led screen one time,clear the led mask,checking the cables connection,if any led screen modules fail,you can replace it with our spare modules


    Q5,How to select led type?

    In usually,

    For indoor stage will be select indoor die casting P1.6 P1.9 P2.5 P3 P4 P5 P6,P3.91 P4.81 P6.25 P8

    For outdoor stage will be select P4.81 P5 P6.25 P6 P8 P10

    For Indoor fixed installed led screen, can select P1.6 P1.9 P2.5 P3 P4 P5 P6 P7.62 P8 P10

    For outdoor fixed installation,if it is not directly to sun,can select outdoor SMDP5 P6 P8 P10,DIP P10 P12

    if directly to sun,can select outdoor SMD P8, DIP P10

    For big size led screen can select DIP P10 P12 P16 or P20
