Ultral Thin Rental Led Display Screen Pixel Pitch 4mm Indoor Led
Display Billboard
Products Description:
1, Low consumption＆energy saving, stable performance, highly
durable
2, cabinets,fanless design with noiseless power supply.
3, High precision CNC maching,precision up to 0.1mm
4, Clear picture without flicker and distortion
5, 2 years warranty, easy to install & maintenance
6. Ultra Slim and light weight (only 8Kg/panel), portable handy
7. deepest blackness levels and light absorbing techniques
8. Advanced digital control technology, excellent effect.
9. Smart locking system, screw driver free installation
10. Support various interfaces and signal sources.
11. Optional model: 3mm, 4mm, 5mm, 6mm
Parameters of BST-IR-4
| Model | P4 Indoor LED Display Screen |
| NO. | Items | Specifications |
| 1 | Pixel Pitch(MM) | 4 |
| 2 | Pixel Composition | SMD3in1 |
| 3 | LED Encapsulation Type | SMD2121 |
| 4 | LED Chip Sizes | 12+13+13(RGB) Epistar + Silan + Nicha + Opto |
| 5 | Pixel Density(Dots/M2) | 62500 |
| 6 | Module Size(MM) | 128 x 128 |
| 7 | Module Resolution(Dots) | 32 x 32 |
| 8 | Cabinet Size(MM) | 512x 512 |
| 9 | Cabinet Resolution(Dots) | 128 x 128 |
| 10 | Maximum Brightness | >1200cd/sqm |
| 11 | Before Dot to Dot Correction | 1500cd/sqm |
| 12 | After Dot to Dot Correction | 1200cd/sqm |
| 13 | Brightness Adjustment Range | Manually, Auto Stepless Continuous Adjustment, 14 levels Adjustment
without Gray Scale Loss |
| 14 | Color Temperature Adjustable | 3200K - 10000K |
| 15 | Best View Distance(M) | 4m - 100m |
| 16 | Horizontal View Angle | 140 deg |
| 17 | Vertical View Angle | 140 deg |
| 18 | Signal Processing | 16bit |
| 19 | Control Mode | Synchronization |
| 20 | Driving Mode | 1/8 scan and 1/16 scan |
| 21 | Contrast | 4000:1 |
| 22 | Colors | 281 Trillion Billion |
| 23 | Gray scale per colors | 65536 level |
| 24 | Video Frame Frequency | More than 60HZ |
| 25 | Refresh Rate | More than 1920HZ |
| 26 | Lifetime | 100000 Hours |
| 27 | Maximum Power Consumption | Less than 600 w |
| 28 | Average Power Consumption | Less than 300 w |
| 29 | Cabinet Weight | 7.8Kg |
| 30 | Compatible Signals(with video processor) | X Composite, X Component, RGB,SDI,HDSDI,DVI,AV, S-Video, VGA, HDMI, DP |
| 31 | Working Voltage | 100-240V/AC 50/60HZ |
| 32 | Environment Temperature | –20 deg / +60 deg |
| 33 | Storage Temperature | –40 deg / +60 deg |
| 34 | IP Protection Rate | IP40 |
| 35 | Screen Surface Evenness | Less than 0.5mm |
| 36 | Working Humidity | 10-99 percent |
| 37 | Storage Humidity | 10-99 percent |
| 38 | Malfunction Dot Rate | Less than 0.0001 |
| 39 | Display Screen Signals | RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION |
| 41 | Wind Resistance | Level 12 |
| 42 | Shock Resistance | Level 8 |
P4mm Indoor Rental LED Display
BST led display Special advantage:
1.LEDs. we select super led tips with high brightness, broad viewing
angle(H140degree, V140degree), all the LEDs are ageing for 72 hours
before assembly,
when in modules, also aging for 72 hours, after assembly into a
screen, still aging 72 hours. so the final LEDs are aging at least
for 216 hours, up to 9 days.
2.Modules. we use SMD2121/SMD2727/SMD3535 3in1 pixel configuration to realise
high brightness. you may find some lower price suppliers but also
same brightness. if you note, maybe they use is not real good
quality rank LEDs lamp, in this case, can cut down much cost but
also cut down the life of the display. why? because to reach the
same brightness and better waterproof, it is big square lamps from
nation star unique design can do it. and our modules case is PVC,
which is more durable and have a stronger ability in bask,
anti-ultraviolet and Difficult to deformation than Plastic ones.
3.Cabinets. they are used in galvanized steel, or super lightweight Magnesium
alumnium die casting cabinets, anti-salt, anticorrosive and
waterproof.
4.Screen. use state-of-the-art LED drive IC-MBI5124, brightness can up to
high brightness, live color video and vivid image with 256 grey
level. for outdoor led displays, all of them are designed to
withstand harsh environmental conditions, such as sun glare, heat,
cold, and humidity. you can see more details in the quotation.
5.Packing: anti-shaking wooden case or road flight cases, which is lighter
than normal wooden case but more protective to the goods.
6. Spare parts for free. our screen's scotoma rate is below 0.0002, but To prevent
accidental, we provide some free spare parts according to the size
of screen.
7. Warranty for 24 monthes.
8. Technology support: we have full hardware and software files available for all you
need, we are here to working for you.

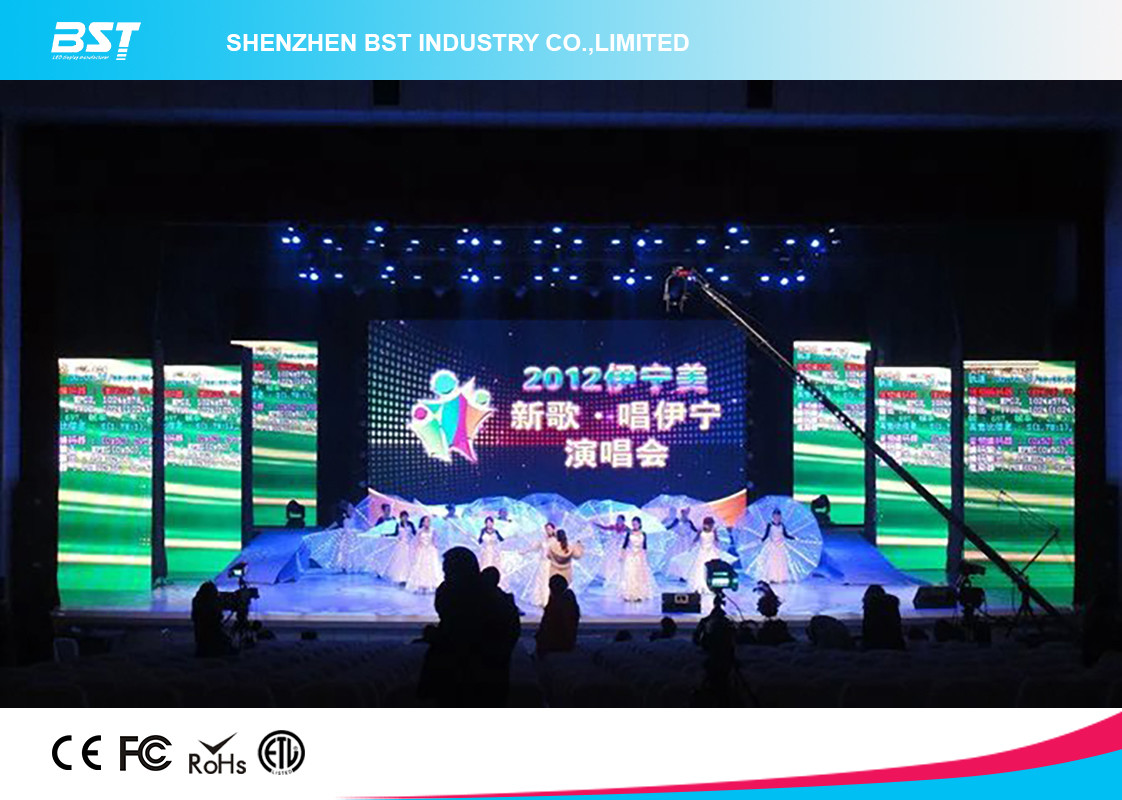

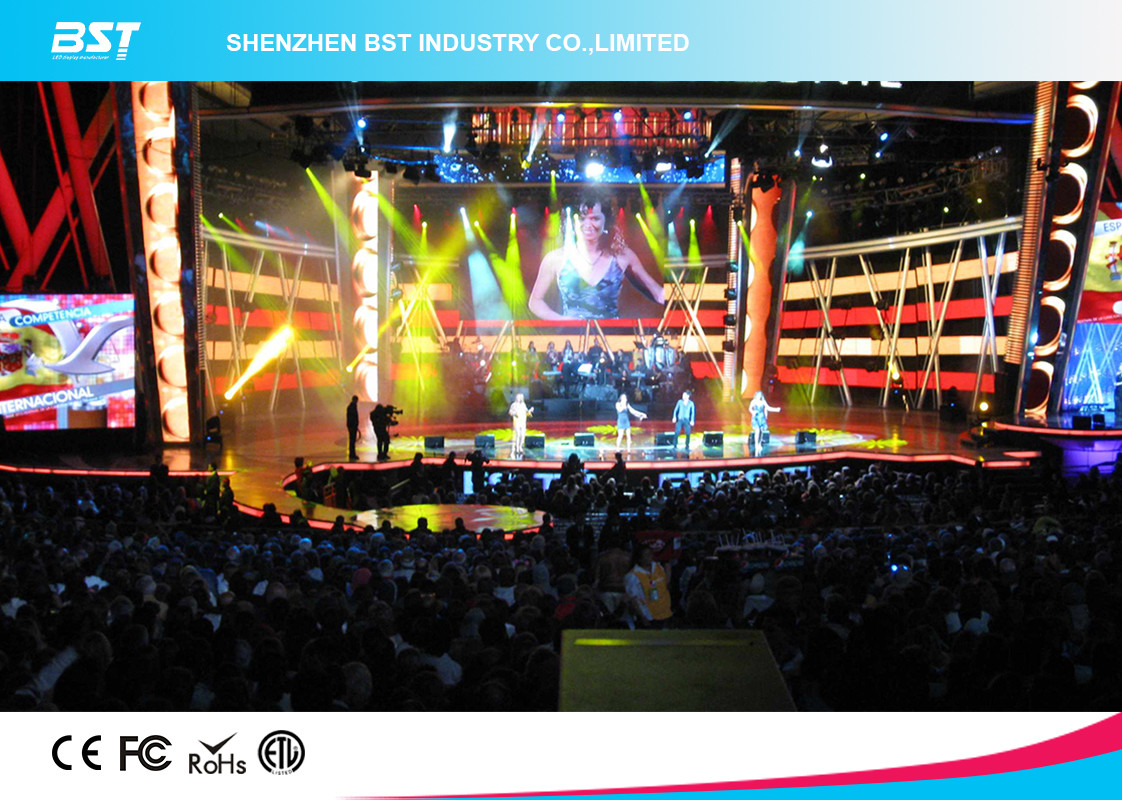

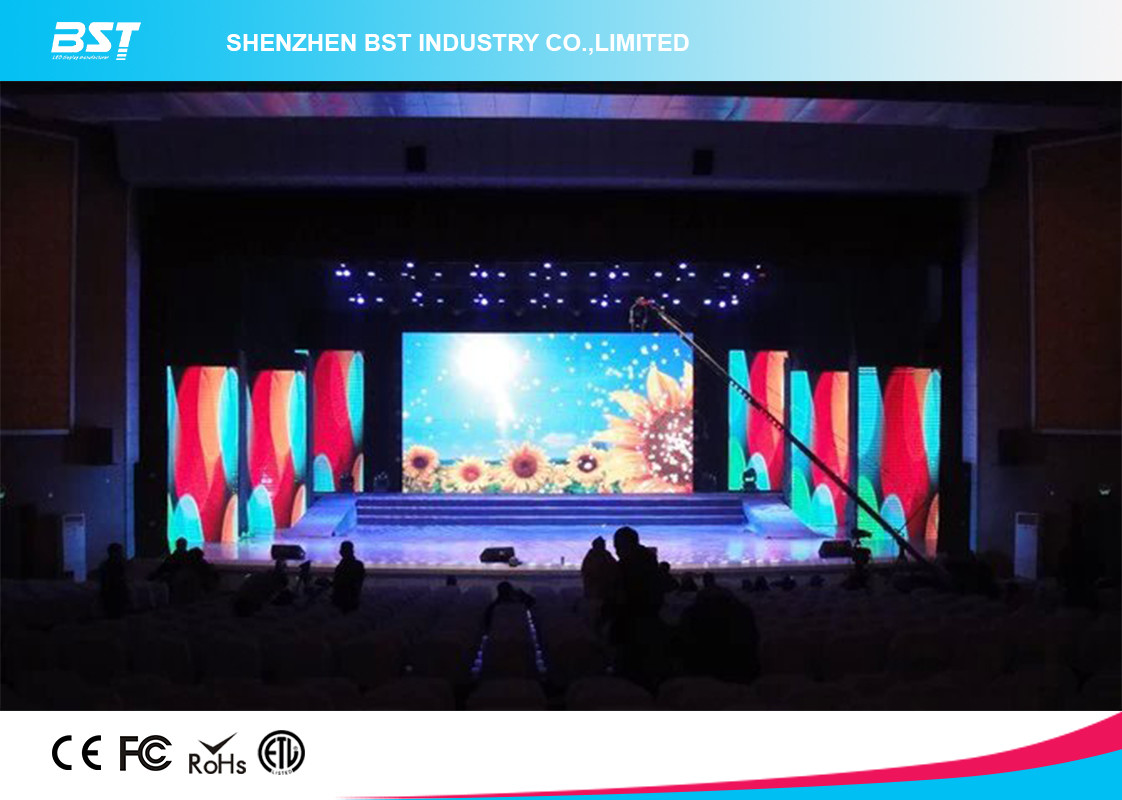

Application:
Stadium perimeter, entertainment events,Commercial advertising,
mobile media, night club, business establishments, such as banks,
stock exchange centers, bus station, schools, telecommunications,
customs, stadiums, studio, shopping malls, railways, airports,
harbors, etc;
Our Services
service after-sale
1.Your inquiry related to our products or price will be replied in
24hrs
2.OEM&ODM,any your customized lightings we can help you to
design and put into product
3.Distributoership are offered for your unique design and some our
current models
4.Protection of your sales area,ideas of design and all your
private information
5.Top Quality+Reasonable Price+Responsible After Service=Successful
& Win
Operate training
•1.LED display basic principle
•2.system operate procedures and management
•3.daily maintenance and safety caution
•4.system software installation
•5.display information daily maintenance
•6.simple software failure treatment
•7.simple hardware failure treatment
FAQ
•Q1: When is the delivery time?
•A1: we will accomplish manufacturing within 15 days after
receiving the deposit.
•Q2: What is the payment method?
•A2: We support a variety of payment methods, the most common is
the TT or LC
•Q3: Can it play HD video?
•A3: Yes, it can realize HD video function with Linsn controlling
system.
•Q4: How about the size of project?
•A4: Please offer the size with "width by height" of project. We
will offer the suitable solution for your project size
•Q5: How about your service?
•1. Lifetime free maintenance and upgrade.
•2. Complaint respond period not exceed 24 hours; maintenance
guidance and problem solution supplied in 48 hours.
•3. Customer satisfaction tracking report.
•4. Free technician training.
•5. Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
•6. Special service for big project, such as stadium, exhibitions,
squares and so on.
