    P3 SMD2121 Indoor Rental Led Display Screen 1200cd / m2 For Entertainment Event

    Ask Lasest Price
    Brand Name : BST
    Model Number : BST-IR-3
    Certification : CE,RoHs, FCC, ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000sq.meter / Month
    Delivery Time : 10-20 days after receive payment
    • Product Details
    • Company Profile

    P3 SMD2121 Indoor Rental Led Display Screen 1200cd / m2 For Entertainment Event

    P3 SMD2121 Indoor Rental Led Display Screen 1200cd / m2 For Entertainment Event


    Producst Description:

    1. Smart locking system, screw driver free installation

    2. Indication lights to show status of power and signal status

    3, Cost effective cabinet unit

    4. Ultra Slim and light weight (only 8Kg/panel), portable handy

    5. deepest blackness levels and light absorbing techniques

    6. High gray level and good color uniformity with brand IC, led lamp

    7, High precision CNC maching,precision up to 0.1mm

    8, First-calss LED chip

    9, 2 years warranty, easy to install & maintenance

    10, Perfect uniformity and no mosaic

    11, cabinets,fanless design with noiseless power supply.


    Parameters of BST-IR-3

    Pixel pitch3mm
    Size of ModuleW 192*H 192 mm
    Density of pixel111111/m2
    Pixel configuration1R1G1B
    LED EncapsulationSMD2121
    Resolution of ModuleW 64*H 64
    Power consumption for Module≤20W
    Standard Cabinet sizeW 576mm*H 576mm
    Standard Cabinet ResolutionW 192*H 192
    Module arrangement3*3
    installationHanging, stacking
    Cabinet materialSlim aluminum
    Cabinet weight8kg
    The way the cascadeAviation head
    Protect degreeIP40
    The Optimum Viewing distance(m)3~50
    Luminance of white balance)≥ 1200(CD/m2)
    The Optimum Viewing angelH140o V140o
    Power consumption250 ave 600 max w/ m2
    Display ratio (suggest)4:3/16:9
    Driving ComponentsMBI 5124
    Dring Method
    1/16&1/32 scanning constant driving
    System working voltage88-132VAC176-264VAC 47-63HZ
    Operating Environment Temperature-20°C—65°C Optional
    Refresh rate>1500hz
    Frame Frequency≥500HZ
    Grey scaleEach color ≥16384 Grade
    Brightness adjustment
    256 levels of each color(R,G,B) can be adjusted automatically and 100 levels of each color
    Input SignalRF,S-VIDEO,RGB TV,YUT,YC,COMPOSITION
    Control SystemPCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video processor
    Mean Time between Failure>5000 hours
    Life span>100,000 hours
    Out-of Control rate<0.0001

    Transmitting Distance
    The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers
    image adjustmentcontrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc
    Image processingVideo noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc
    Brightness uniformityThe whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9

    Aging Testing

    LED display aging test precautions

    1. The test content: black and white, red, green, blue monochrome, grayscale gradient, video effects, text effects
    2. LED display a white screen test playing time is not less than 24 hours
    3. Monochrome and grayscale gradient test not less than 24 hours
    4. Video and text effects test not less than 24 hours

    P3 SMD2121 Indoor Rental Led Display Screen 1200cd / m2 For Entertainment Event


    Application:

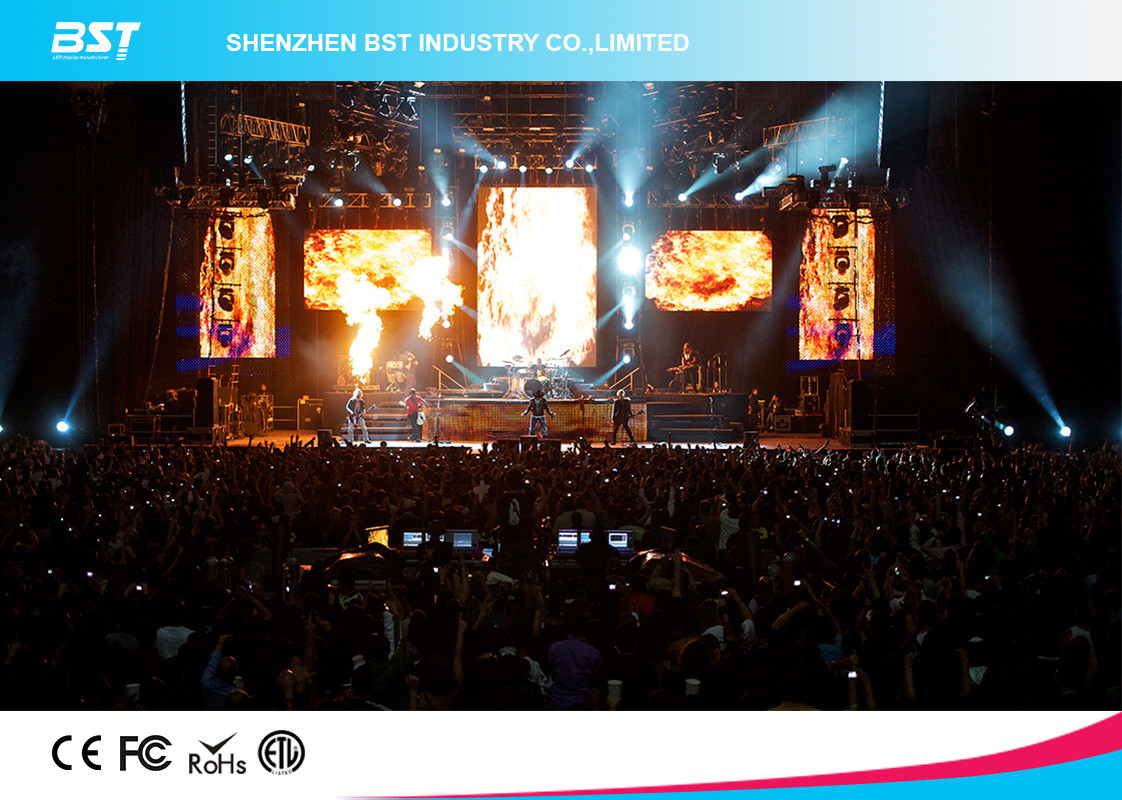

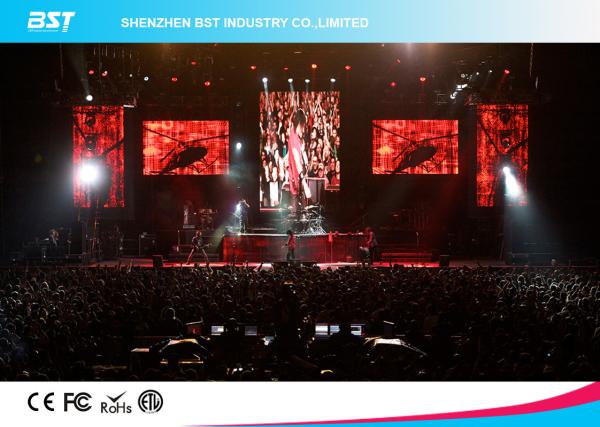

    Stadium perimeter, entertainment events,Commercial advertising, mobile media, night club, business establishments, such as banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, etc;


    P3 SMD2121 Indoor Rental Led Display Screen 1200cd / m2 For Entertainment Event

    P3 SMD2121 Indoor Rental Led Display Screen 1200cd / m2 For Entertainment Event

    P3 SMD2121 Indoor Rental Led Display Screen 1200cd / m2 For Entertainment Event

    P3 SMD2121 Indoor Rental Led Display Screen 1200cd / m2 For Entertainment Event

    Trade Information

    Trade Terms: EXW, CIF, FOB

    Payment Terms: T/T, Western Union, PayPal, Escrow, MoneyGram

    Payment Condition: TT 100% in advance; TT 50% deposit in advance, 50% balance arranged before shipment

    Delivery Time: 10~15 days from receipt of payment in advance

    Packing: Standard export wooden box packing

    Shipping: By Express, By air, By sea


    Why Choose us?


    BST has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.


    Pre-sale service:

    1. Reply enquiries in 24 hours.

    2. Market research and forecast for customer.

    3. Provide unique and professional solutions based on customer's requirement.

    4. Data sheet and samples offer.

    5. Other services, such as special packing design, factory visiting and so on.


    In-sale service:

    1. Tracking report in producing.

    2. Quality test report for every order.

    3. Photos and videos as per customer's requirement.

    4. Free spare parts.


    After-sale service:

    1. Lifetime free maintenance and upgrade.

    2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

    3. Customer satisfaction tracking report.

    4. Free technician training.

    5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.

    6. Special service for big project, such as stadium, exhibitions, squares and so on.
