    P6 SMD3528 Indoor LED Display Module 192×192mm With 140 Degree View Angle

    Ask Lasest Price
    Brand Name : BST
    Model Number : BST-IM-6
    Certification : CE, RoHS, FCC, ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000sqm/month
    Delivery Time : 10-20 days after receive payment
    • Product Details
    • Company Profile

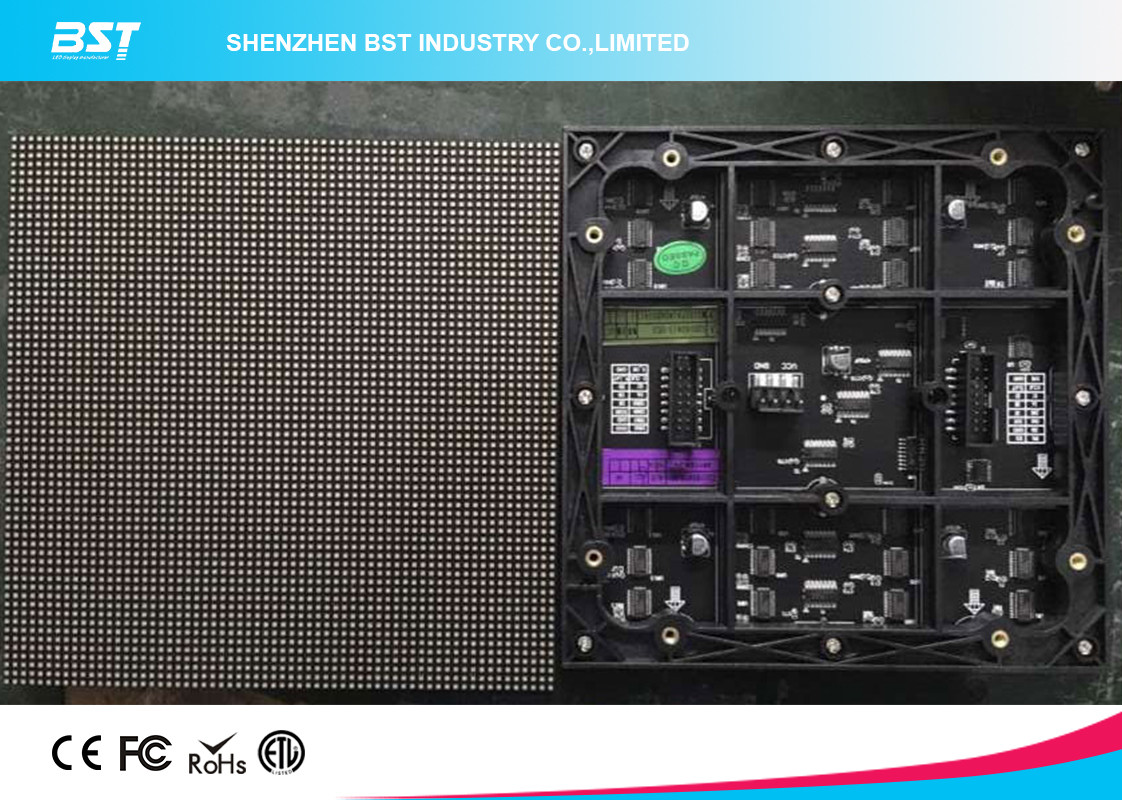

    P6 SMD3528 Indoor LED Display Module 192×192mm With 140 Degree View Angle

    P6 SMD3528 Indoor LED Display Module 192×192mm With 140 Degree View Angle


    Quick Detail:


    1, Good quality; Good Price

    2. 192 × 192 mm module size;

    3. SMD3528 LED type;

    4. 1/16 scan constant current;

    5, Fast delivery time.


    Detail Description:


    There are 12 pcs 5124 driving ICs for each LED module, 1/16 scan;

    The maximum current is about 4.2 Amp;

    Carton box packed, EPE foam inside.


    Specifications:


    Product model number

    BST-IM-6

    1. Pixel

    Pixel L ED

    3528

    Pixel Configuration

    1 R, 1G , 1B

    Wave length ( nm )

    R: 626-628 , G: 518-520 , B: 466-468

    Pixels Pitch ( mm )

    6

    2 . Module

    Module Size ( mm )

    192 * 192 * 10

    Module Pixels (dot)

    32 * 32

    3. Packaging

    Packing box material

    Wooden case or Carton case

    4. electricity parameter

    Pixel density (dots/ m 2 )

    27666

    White Balance Brightness ( cd/m 2 )

    ≥ 1200

    Color temperature ( K )

    5000-9500 (choice by user)

    Brightness Adjusted

    100 grade by software or by Auto-optic induced.

    View Angel

    Horizontal 140 ° ; Vertical 140 °

    Best viewing distance ( m )

    6-30

    Communication distance ( m )

    Internet Wire : 120 Fiber Cable : 1000

    Screen work Method

    1/16 scan

    LED driving method

    Constant driving current

    Gray Grades

    16384 levels for each color

    Refresh Frequency ( Hz )

    ≥ 1500

    Picture display method

    Dots to dots display synchronized with CRT

    Signal interface

    DVI

    Input signal

    Video : PAL/NTSC optioned . VGA, Svideo, DVD, TV

    Display format

    800 * 600 , 1024 * 768 , 1280 * 1024

    Software

    Support windows series system

    Working temperature (ºC )

    -30+60

    Humidity ( RH )

    Up to 95

    Stored temperature ( ºC)

    -30 +70

    Screen Lifetime(hours)

    ≥100, 000

    Out of controlled dots

    ≤3/10, 000 (Out of controlled dots means the pixels
    of which the brightness

    and the wave length are both >10%
    depart to the normal one)

    Switch power supply

    Switch power supply
    (include CE/GS or UL/CSA certificate)
    110V/60HZ , 220V/50HZ


    P6 SMD3528 Indoor LED Display Module 192×192mm With 140 Degree View AngleP6 SMD3528 Indoor LED Display Module 192×192mm With 140 Degree View Angle
