    32x16 Pixels P10 SMD3535 LED Display Module 320mm X 160mm with 10000 Pixel/㎡

    Ask Lasest Price
    Brand Name : BST
    Model Number : BST-OM-10-S
    Certification : CE, RoHS, FCC, ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000sqm/month
    Delivery Time : 10-20 days after receive payment
    • Product Details
    • Company Profile

    32x16 Pixels P10 SMD3535 LED Display Module 320mm X 160mm with 10000 Pixel/㎡

    32x16 Pixels P10 SMD3535 LED Display Module 320mm X 160mm with 10000 Pixel/㎡


    Quick Detail:

    1. SMD3535 LED;

    2. RGB LED is Epistar brand;

    3. 32x16 dots;

    4. 320x160 mm;

    5. MBI 5124 drive IC;

    6. 1/4 scan constant current.


    Detail Description:

    There are Epistar LED chip;MBI5124 driving IC;, 1/4 scan;

    Each LED module is with 32 by 16 dots, 320 by 160 mm size.

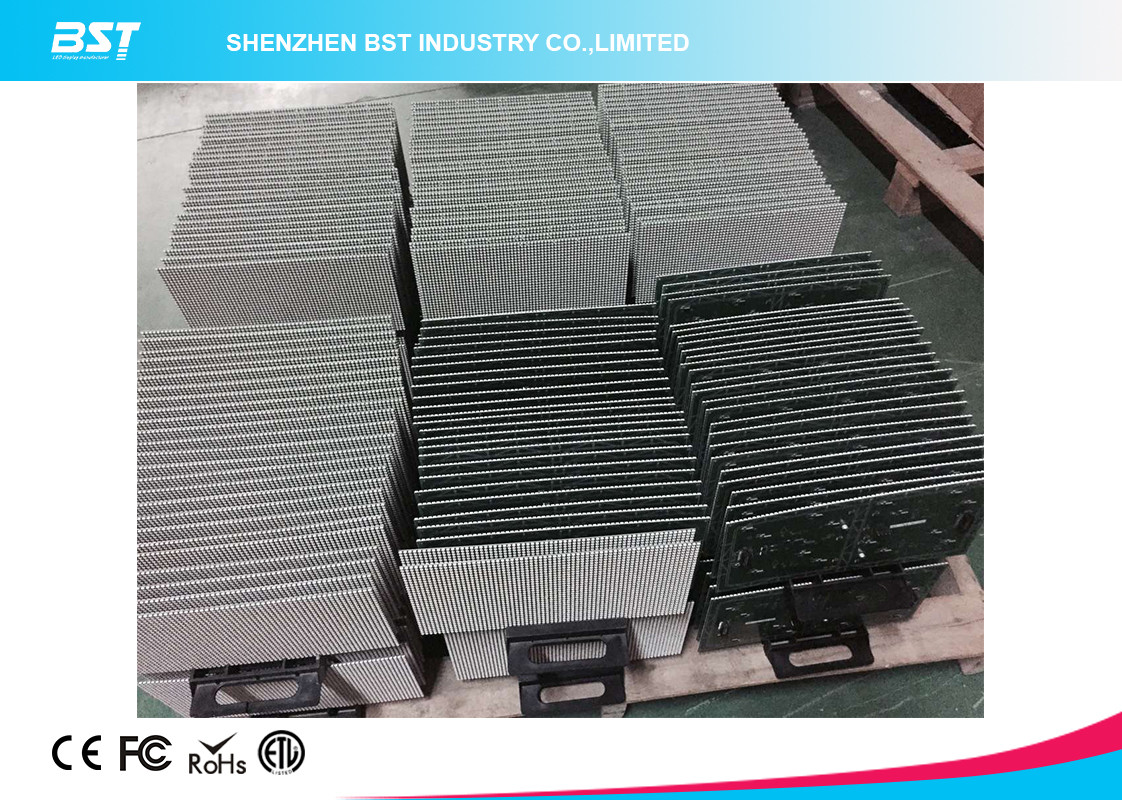

    Carton box packed, EPE foam inside.


    Specifications:


    ItemsParameter
    LED EncapsulationSMD 3535
    Pixel Pitch10mm
    Module Resolution(W*H)32* 16
    Module Size320*160mm
    Pixel Configuration1R1G1B(3 in1)
    Pixel Density10000 pixel/㎡
    Driving Method1/4 Scan1/8 Scan
    Refresh Frequency≥1500Hz(Supporting high refresh rate and depending on system configuration)
    Driving ICSpecial constant current IC with high refresh rate and high gray scale
    Grey Scale>16BIT(According to system and IC equipped)
    White Balance Brightness>6000cd/㎡>5000cd/㎡
    Color Temperature8000K ± 500(adjustable)
    Viewing AngleHorizontal Angle 140° Vertical Angle 140°
    Optimal Viewing Distance>10m
    Working VoltageDC5V
    Max Power Consumption10W/pcs(White Balance)15W/pcs(White Balance)
    Avg Power Consumption5W/pcs(Normal Working)8W/pcs(Normal Working)
    Lifetime50000 Hours
    Operating Temperature-10℃ ~50℃
    Weight0.350kg/pcs

    32x16 Pixels P10 SMD3535 LED Display Module 320mm X 160mm with 10000 Pixel/㎡


    32x16 Pixels P10 SMD3535 LED Display Module 320mm X 160mm with 10000 Pixel/㎡

    32x16 Pixels P10 SMD3535 LED Display Module 320mm X 160mm with 10000 Pixel/㎡32x16 Pixels P10 SMD3535 LED Display Module 320mm X 160mm with 10000 Pixel/㎡
