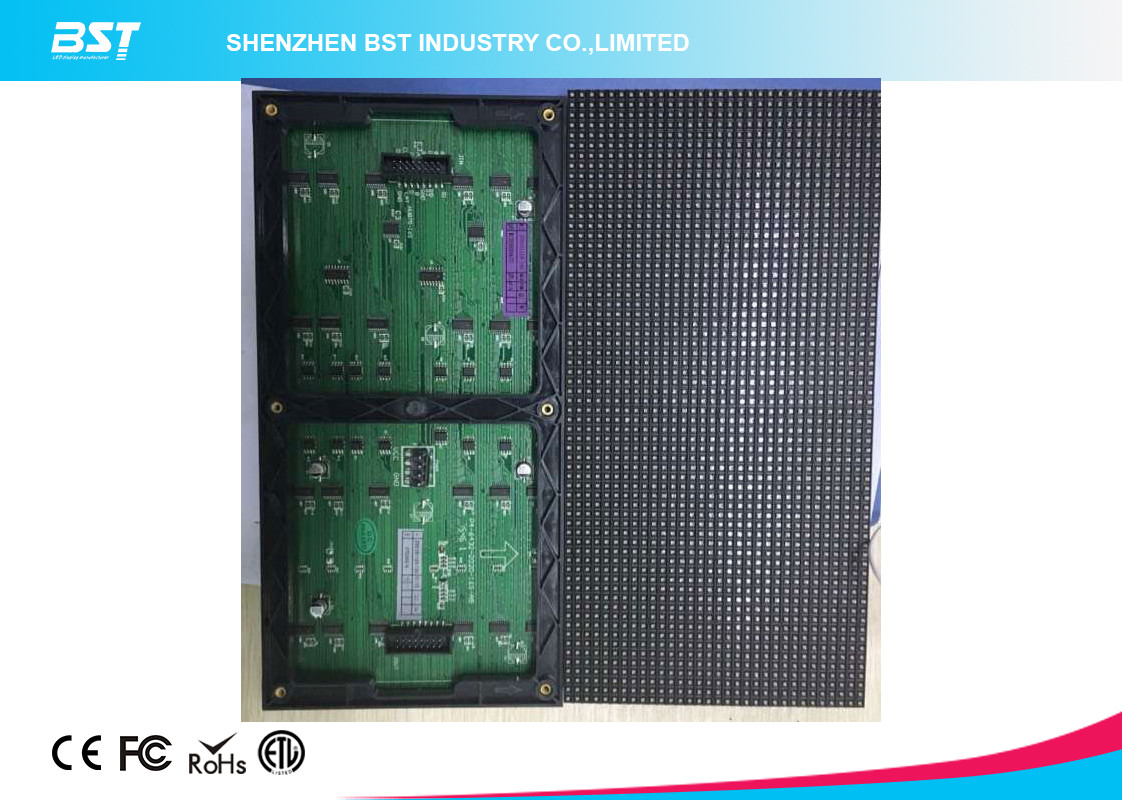

P7.62 Indoor Full Color Led Screen Module 32 X 16pixel / 244mm X 122mm For Stage

ShenZhen BST Industry Co., Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap P7.62 Indoor Full Color Led Screen Module 32 X 16pixel / 244mm X 122mm For Stage from wholesalers

    Buy cheap P7.62 Indoor Full Color Led Screen Module 32 X 16pixel / 244mm X 122mm For Stage from wholesalers
    • Buy cheap P7.62 Indoor Full Color Led Screen Module 32 X 16pixel / 244mm X 122mm For Stage from wholesalers
    • Buy cheap P7.62 Indoor Full Color Led Screen Module 32 X 16pixel / 244mm X 122mm For Stage from wholesalers
    • Buy cheap P7.62 Indoor Full Color Led Screen Module 32 X 16pixel / 244mm X 122mm For Stage from wholesalers
    • Buy cheap P7.62 Indoor Full Color Led Screen Module 32 X 16pixel / 244mm X 122mm For Stage from wholesalers

    P7.62 Indoor Full Color Led Screen Module 32 X 16pixel / 244mm X 122mm For Stage

    Ask Lasest Price
    Brand Name : BST
    Model Number : BST-IM-7.62
    Certification : CE, RoHS, FCC, ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000sqm/month
    Delivery Time : 10-20 days after receive payment
    • Product Details
    • Company Profile

    P7.62 Indoor Full Color Led Screen Module 32 X 16pixel / 244mm X 122mm For Stage

    P7.62 Indoor Full Color Led Screen Module 32 X 16pixel / 244mm X 122mm For Stage


    Quick Detail:

    1, Good quality; Good Price

    2. 244 × 122 mm module size;

    3. SMD3528 LED type;

    4. 1/8 scan constant current;

    5, Fast delivery time.

    6, First class led chip


    Detail Description:

    There are 18 pcs 5124 driving ICs for each LED module, 1/8 scan;

    The maximum current is about 4 Amp;

    Carton box packed, EPE foam inside.


    Specifications:

    ItemsParameter
    LED EncapsulationSMD3528
    Pixel Pitch7.62mm
    Module Resolution(W*H)32* 16
    Module Size244*122mm
    Pixel Configuration1R1G1B(3 in1)
    Pixel Density17222 pixel/㎡
    Driving Method1/16 Scan1/8 Scan
    Refresh Frequency≥1500Hz(Supporting high refresh rate and depending on system configuration)
    Driving ICSpecial constant current IC with high refresh rate and high gray scale
    Grey Scale>16BIT(According to system and IC equipped)
    White Balance Brightness>1000cd/㎡ (Black) />1200cd/㎡(White)>1000cd/㎡ (Black) />1500cd/㎡(White)
    Color Temperature8000K ± 500(adjustable)
    Viewing AngleHorizontal Angle 140° Vertical Angle 140°
    Optimal Viewing Distance>8m
    Working VoltageDC5V
    Max Power Consumption10W/pcs(White Balance)15W/pcs(White Balance)
    Avg Power Consumption6W/pcs(Normal Working)8W/pcs(Normal Working)
    Lifetime50000 Hours
    Operating Temperature-10℃ ~50℃
    Weight0.32kg/pcs

    P7.62 Indoor Full Color Led Screen Module 32 X 16pixel / 244mm X 122mm For StageP7.62 Indoor Full Color Led Screen Module 32 X 16pixel / 244mm X 122mm For StageP7.62 Indoor Full Color Led Screen Module 32 X 16pixel / 244mm X 122mm For StageP7.62 Indoor Full Color Led Screen Module 32 X 16pixel / 244mm X 122mm For StageP7.62 Indoor Full Color Led Screen Module 32 X 16pixel / 244mm X 122mm For Stage
