    High Rsolution P2.5 Black LEDs Display Module 240 × 240mm for Commercial Advertising

    Ask Lasest Price
    Brand Name : BST
    Model Number : BST-IM-2.5
    Certification : CE, RoHS, FCC, ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000sqm/month
    Delivery Time : 10-20 days after receive payment
    • Product Details
    • Company Profile

    High Rsolution P2.5 Black LEDs Display Module 240 × 240mm for Commercial Advertising

    High Rsolution P2.5 Black LEDs Display Module 240 × 240mm for Commercial Advertising​


    Quick Detail:
    1, First class LED chip
    2, Good quality; Good Price
    3. 240× 240 mm module size;
    4. SMD2121 Black LEDs;
    5. 1/24 scan constant current;
    6, Fast delivery time.

    Detail Description:
    This LED module is with low power consumption, about 300 W per square meter;
    Each square meter brightness could reach to 1300 nits;
    Synchronization control method operated to achieve higher refresh rate.

    Specifications:

    Product model number

    BST-IM-2.5

    1.Pixel

    Pixel L ED

    2121

    Pixel Configuration

    1 R, 1G , 1B

    Wave length ( nm )

    R: 626-628 , G: 518-520 , B: 466-468

    Pixels Pitch ( mm )

    2.5

    2 . Module

    Module Size ( mm )

    240 * 240 * 10

    Module Pixels (dot)

    96 * 96

    3.Packaging

    Packing box material

    Wooden case or Carton case

    4.electricity parameter

    Pixel density (dots/ m 2 )

    160000

    White Balance Brightness ( cd/m 2 )

    ≥ 1300

    Color temperature ( K )

    5000-9500 (choice by user)

    Brightness Adjusted

    100 grade by software or by Auto-optic induced.

    View Angel

    Horizontal 140 ° ; Vertical 140 °

    Best viewing distance ( m )

    2.5-30

    Communication distance ( m )

    Internet Wire : 120 Fiber Cable : 1000

    Screen work Method

    1/24 scan

    LED driving method

    Constant driving current

    Gray Grades

    16384 levels for each color

    Refresh Frequency ( Hz )

    ≥ 1500

    Picture display method

    Dots to dots display synchronized with CRT

    Signal interface

    DVI

    Input signal

    Video : PAL/NTSC optioned . VGA, Svideo, DVD, TV

    Display format

    800 * 600 , 1024 * 768 , 1280 * 1024

    Software

    Support windows series system

    Working temperature (ºC )

    -30+60

    Humidity ( RH )

    Up to 95

    Stored temperature ( ºC)

    -30 +70

    Screen Lifetime(hours)

    ≥100, 000

    Out of controlled dots

    ≤3/10, 000 (Out of controlled dots means the pixels
    of which the brightness
    and the wave length are both >10%
    depart to the normal one)

    Switch power supply

    Switch power supply
    (include CE/GS or UL/CSA certificate)
    110V/60HZ , 220V/50HZ


    High Rsolution P2.5 Black LEDs Display Module 240 × 240mm for Commercial AdvertisingHigh Rsolution P2.5 Black LEDs Display Module 240 × 240mm for Commercial Advertising

    Packing and Shipment
    High Rsolution P2.5 Black LEDs Display Module 240 × 240mm for Commercial Advertising
    High Rsolution P2.5 Black LEDs Display Module 240 × 240mm for Commercial Advertising
    High Rsolution P2.5 Black LEDs Display Module 240 × 240mm for Commercial Advertising

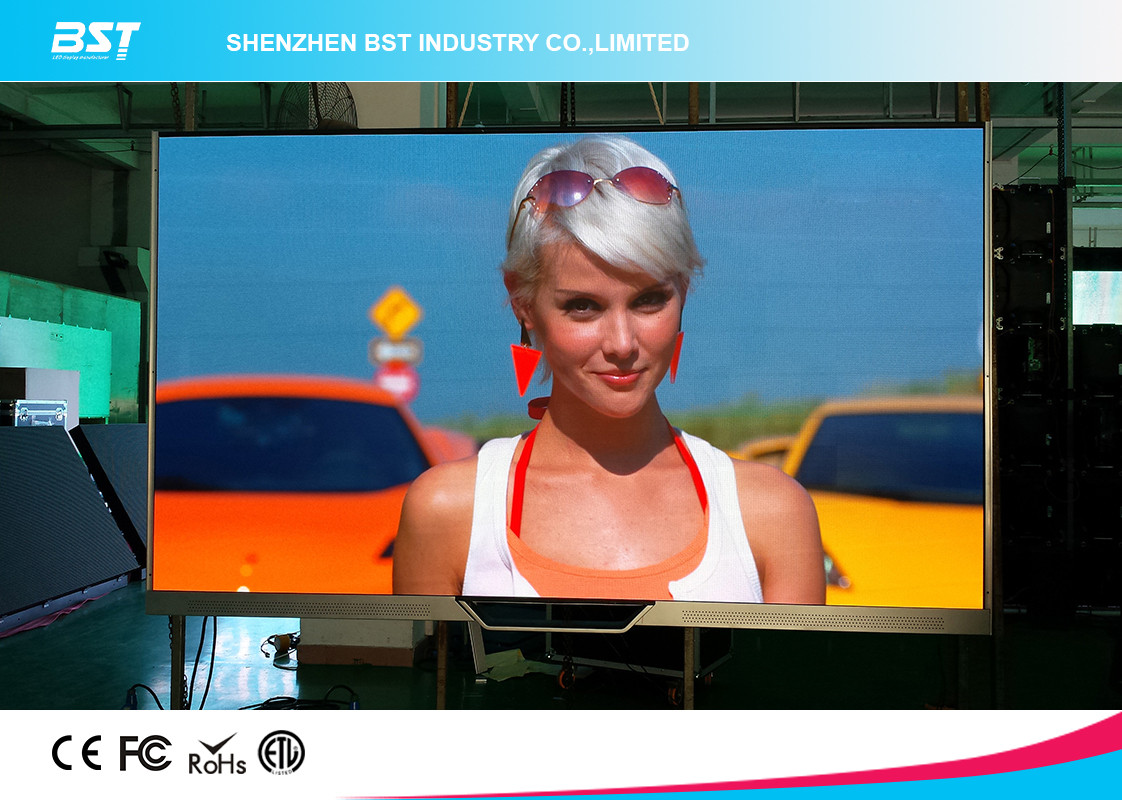

    P2.5mm LED Display

    High Rsolution P2.5 Black LEDs Display Module 240 × 240mm for Commercial AdvertisingHigh Rsolution P2.5 Black LEDs Display Module 240 × 240mm for Commercial AdvertisingHigh Rsolution P2.5 Black LEDs Display Module 240 × 240mm for Commercial Advertising

    Workshop
    High Rsolution P2.5 Black LEDs Display Module 240 × 240mm for Commercial Advertising
