    P10 SMD LED Display 6500cd / m2 , Curved LED Video screen 1280 x 960mm Cabinet Size

    Ask Lasest Price
    Brand Name : BST
    Model Number : BST-OCV-10
    Certification : CE, RoHS, CCC, IP65
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000sq.meter / Month
    Delivery Time : 10-20 days after receive payment
    • Product Details
    • Company Profile

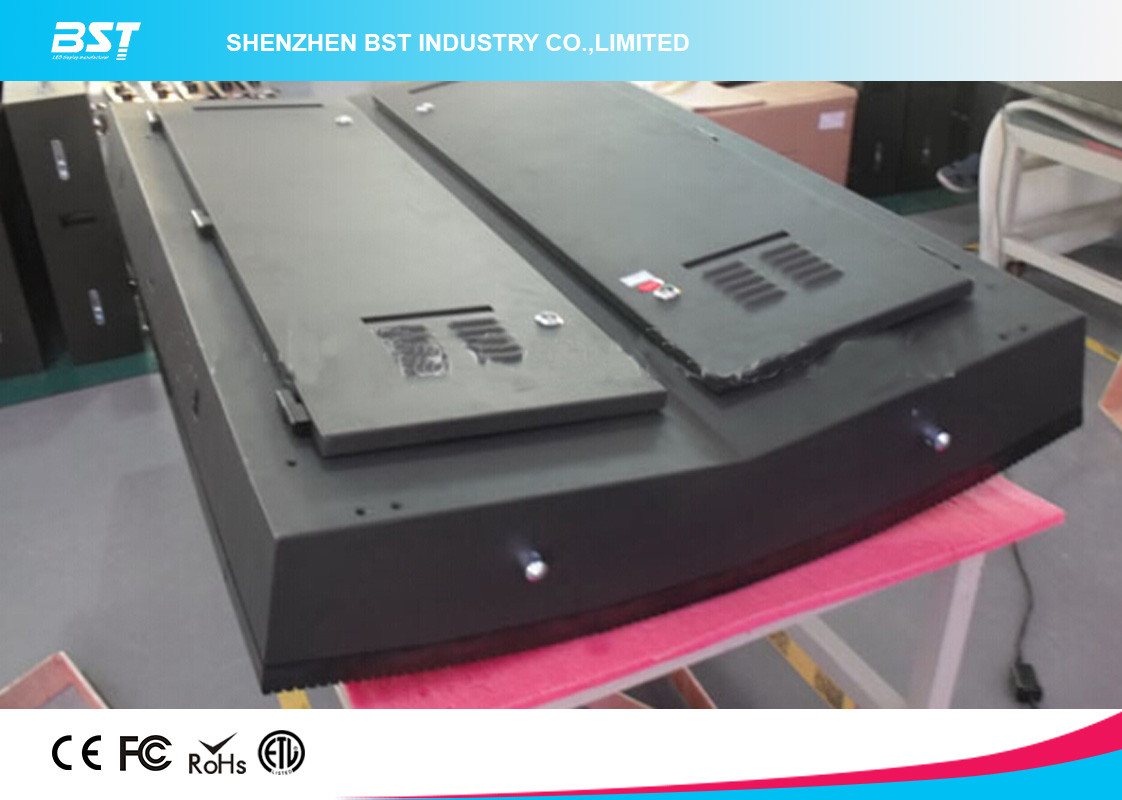

    P10 SMD LED Display 6500cd / m2 , Curved LED Video screen 1280 x 960mm Cabinet Size

    P10 SMD LED Display 6500cd / m2 , Curved LED Video screen 1280 x 960mm Cabinet Size


    Products Description:

    1. Pixel Pitch:10
    2. Pixel Density:10000dots/m2
    3. Brightness:>6500cd/m2
    4. Refresh Rath:>1500Hz
    5. Protection: Outdoor IP65

    6. Aerodynamic Design:wind resistant- ideal for large scale setups.
    7. Grayscale processing&color calibration techniques ensures amazing graphic quality
    8. Lower requirement of Steel structure, 35% structure cost saved

    9. 3 Highs: high gray scale, high refresh, high contrast, with vivid display effect;

    10. 4 Lows: low power consumption, low noise created, low transportation cost and low installation cost;

    11. Various applications: suit for hanging up, piling and fixing installation. Usage: outdoor information publish, outdoor advertising, etc.;

    12. 2 Wides: wide compatiblity and wide viewing angle. Models with different pixel pitches are compatible in one led display, horizontal view angle is 140 deg. and vertical 140 deg.;


    Specifications:

    LED Display Series

    BST-OCV-8

    BST-OCV-10

    BST-OCV-16

    Pixel Pitch(mm)

    8

    10

    16

    Pixel Density(dots/m2)

    15625

    10000

    3906

    Brightness(cd/m2)

    >6500

    >6500

    >6000

    Color Temperature(after calibration)K

    6500

    6500

    6500

    Module Size(W*H*D)(mm)

    1024*1024

    1280*960

    1024*1024

    Weight(kg/Panel)

    65

    75

    65

    Weight(kg/m2)

    65

    65

    65

    LED Type

    SMD3535

    SMD3535/DIP346

    3mm Oval lamp

    LED Chip

    Epistar

    Epistar

    Epistar

    Horizontal/Vertical Viewing Angle(º)

    H140º /V140º

    H140º /V140º

    H120º /V70º

    Recommended Viewing Distance(m)

    8m-200m

    10m-200m

    16m-200m

    Contrast

    2000:1

    2000:1

    2000:1

    Refresh Rate(Hz)

    >1500Hz

    >1500Hz

    >2000Hz

    Grey Scale(bit)

    R’G’B’16bit

    R’G’B’16bit

    R’G’B’16bit

    Frame Rate(Hz)

    50/60Hz

    50/60Hz

    50/60Hz

    Life Time(H)

    ≥100000Hours

    ≥100000Hours

    ≥100000Hours

    Protection

    Outdoor

    Outdoor

    Outdoor

    Power Supply

    Singular Power Supply

    Singular Power Supply

    Singular Power Supply

    Max Power Consumption(W/M2)

    900W

    800W

    800W

    Avr Power Consumption (W/M2)

    500W

    400W

    400W

    Working Temperature

    -25-60℃

    -25-60℃

    -25-60℃

    Working Humidity

    10%-95%

    10%-95%

    10%-95%

    Driving Method

    1/4

    1/4

    Static

    Driving Chip

    MBI5124

    MBI5124

    MBI5124

    Cabinet Material

    Epoxy paint coated, aluminum / iron

    Epoxy paint coated, aluminum / iron

    Epoxy paint coated, aluminum / iron

    Control Input

    DVI/HDMI/HDSDI

    DVI/HDMI/HDSDI

    DVI/HDMI/HDSDI

    Malfunction dot rate

    1 / 10000

    1 / 10000

    1 / 10000

    P10 SMD LED Display 6500cd / m2 , Curved LED Video screen 1280 x 960mm Cabinet Size


    P10 SMD LED Display 6500cd / m2 , Curved LED Video screen 1280 x 960mm Cabinet Size


    P10 SMD LED Display 6500cd / m2 , Curved LED Video screen 1280 x 960mm Cabinet Size


    P10 SMD LED Display 6500cd / m2 , Curved LED Video screen 1280 x 960mm Cabinet Size

    P10 SMD LED Display 6500cd / m2 , Curved LED Video screen 1280 x 960mm Cabinet Size

    Applications:


    High way, commercial advertising, Stadium perimeter, mobile media, entertainment events, business establishments, outdoor advertisement media, government & enterprise project culture & tourism, sports, propaganda image, commercial real estate etc;
