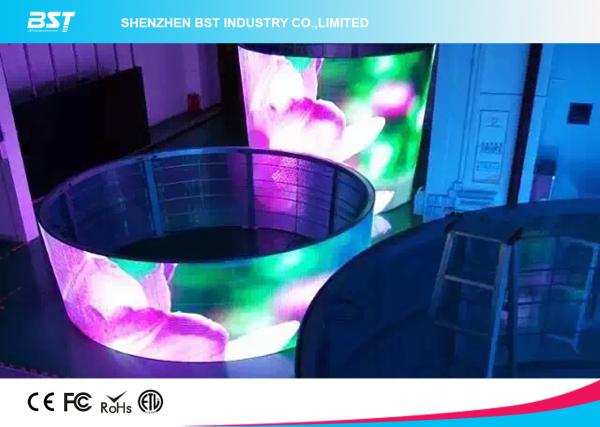

High Brightness Flexible Led Video Curtain Rental p7.62 Led Screen Module
Description:
1. More than 1,500cd/㎡ brightness
2. Lightweight :< 8KG/panel.
3. Ultra thin: 75mm thickness
4. Cabinet connection angle can be adjusted by -15° ~ +15 °.
5, Low noise generation and high cost-performance ratio
Quick Detail:
1, Ultra Slim and lightweight design
2. Clear vivid image quality
3. High transparence, excellent heat-sinking
4. Individual removable and replaceable
5. 16/7 Servicing, 8:00am -- 12:00pm
6. Truly seamless design and multi-angle splicing
Peremeters of BST-IRC-7.62
LED Display Series | BST-IRC-7.62 | BST-IRC-10 | BST-IRC-12.5 |
Pixel Pitch(mm) | 7.62 | 10 | 12.5 |
Pixel Density(dots/m2) | 17222 | 10000 | 6400 |
Avr Power Consumption (W/M2) | ≤300 | ≤300 | ≤300 |
Brightness Max(cd/m2) | ≥1500 | ≥6500 | ≥6500 |
Color Temperature(after calibration)K | 6500 | 1200 | 1000 |
Cabinet Material | Section Aluminum | Section Aluminum | Section Aluminum |
Weight(kg/Panel) | 8 | 8 | 8 |
Working Humidity | 10%-95% | 10%-95% | 10%-95% |
Driving Method | 1/8 | 1/8 | 1/4 |
LED Type | SMD3528 | SMD3528 | SMD3528 |
Horizontal/Vertical Viewing Angle(º) | H140º/V140º | H140º/V140º | H140º/V140º |
Recommended Viewing Distance(m) | 1--100 | 1-100 | 1--100 |
Power Supply | Single power | Single power | Single power |
Refresh Rate(Hz) | ≥1500 | ≥1500 | ≥1500 |
Weight(kg/m2) | 20 | 20 | 20 |
Grey Scale(bit) | R’G’B 16bit | R’G’B 16bit | R’G’B 16bit |
Frame Rate(Hz) | 50/60 | 50/60 | 50/60 |
Life Time(H) | ≥100000 | ≥100000 | ≥100000 |
Protection | Indoor | Indoor | Indoor |
Cabinet Size(W*H)(mm) | 610X732 | 480X960 | 400X800 |
LED Chip | Epistar | Epistar | Epistar |
Contrast | 2000:1 | 2000:1 | 2000:1 |
Protection | IP40 | IP40 | IP40 |
Max Power Consumption(W/M2) | 500 | 500 | 500 |
Working Temperature | -20C°/40C° | -20C°/40C° | -20C°/40C° |
Module Size(W*H)(mm) | 250X250 | 250X250 | 250X250 |
Driving Chip | MBI5124 | MBI5124 | MBI5124 |
Control Input | DVI/HDMI/HDSDI | DVI/HDMI/HDSDI | DVI/HDMI/HDSDI |
Max Hanging(Vertical) | ≥200kg | ≥200kg | ≥200kg |
Application:
Stadium perimeter,mobile media, night club, business
establishments, entertainment events,Commercial advertising, stock
exchange centers, bus station, customs, stadiums, studio, railways,
airports, harbors, shopping malls, such as banks,schools,
telecommunications, etc;
![]() |
