    Light Weight LED Transparent Mesh Screen P10 Full Color Display For Fast Installation

    Ask Lasest Price
    Brand Name : BST
    Model Number : BST-TS-10-F
    Certification : CE,FCC, CCC, Rohs,ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000sqm per month
    Delivery Time : 10 - 20 days after receive payment
    • Product Details
    • Company Profile

    Light Weight LED Transparent Mesh Screen P10 Full Color Display For Fast Installation

    New Technology LED Transparent Mesh Screen P10 Full Color Display For shopping Mall


    Quick Detail:


    1. High Transparent
    2. High brightness for indoor and outdoor use

    3 .Easy for hanging

    4. Easy installation

    5. Ultra slim and light cabinet

    6. Exquisite appearance


    Description:

    1. High transparency
    Up to 80% transparency rate could keep the internal natural lighting and viewing, the SMD are almost invisible from a certain distance.

    2. Light weight
    PCB board is only 10mm thickness, 13kg/㎡ light weight allow small space for the installation possible, and minimizes the negative impact on the appearance of the buildings

    3. Fast installation
    Fast lock systems ensure fast installation, saving labor cost

    4. High brightness and energy saving
    5500nits brightness ensure the perfect visual performance even under direct sunlight, without any cooling system, saves lots of power

    5. Easy maintenance
    Repairing single SMD without taking of single module or entire panel

    6. Stable and reliable
    Stability is very important for this product, under the patent of inlaying SMD into PCB, ensure the stability better than other similar products in the market.

    7. Wide applications

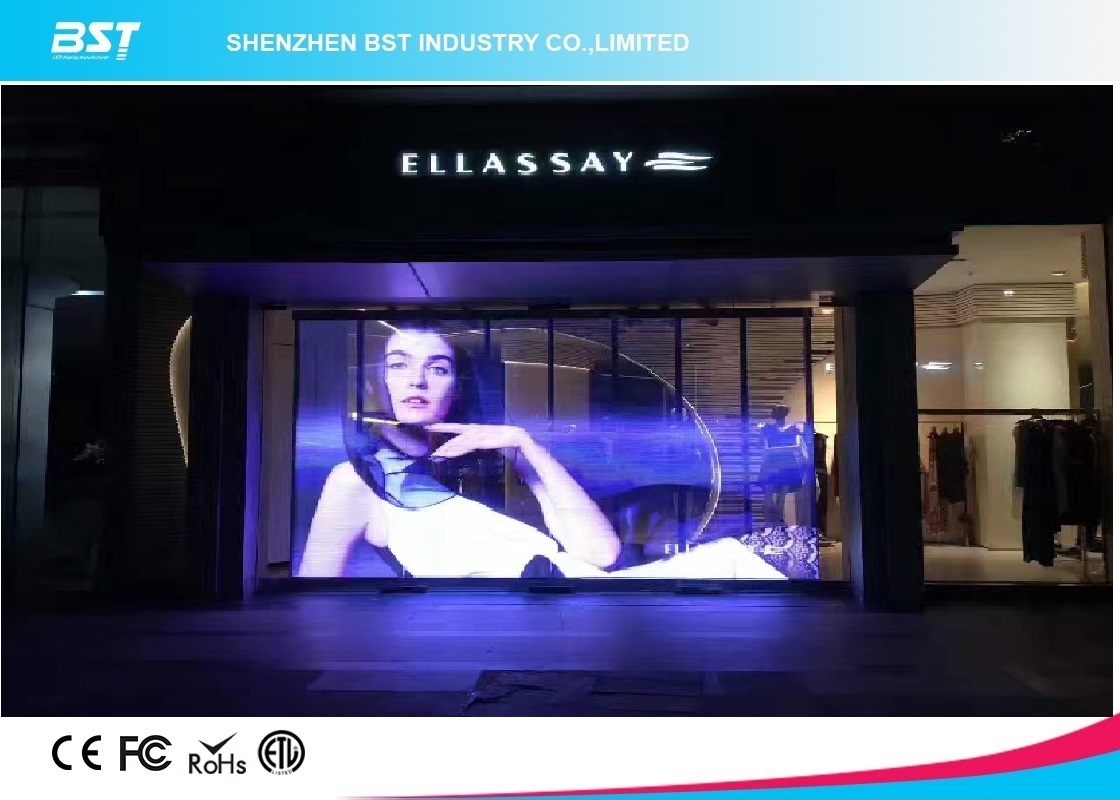

    Any building with glass wall, for example, bank, shopping mall, theatres, chain stores, hotels, and landmarks etc.



    Applications:

    Widely used in glass curtain wall places, such as banks, shopping malls, theaters, commercial streets, stores, hotels, municipal public buildings, landmarks and other advertising




    Packing and transportation

    Professional packaging:wooden box or flight case.
    The way of packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
    Faultlessly solve your worries in the transportation.


    Specifications:

    1. LED Display Technical Parameter

    ProjectP10
    Pixel Pitch10mm
    Pixel density(dots/sqm)10,000
    LED3528
    Module size(mm)320*320
    Module pixel32X32
    Brightness (CD/ sqm )5000~6500
    Transparent≥80%
    Max power consumption1000 w/sq.m
    Ave power consumption390 w/sq.m
    Viewing angleVertical:140°(+70°/-70°); Horizontal:140°(+70°/-70°)
    Refresh Frequencymore than 1920 Hz/s
    Frame Frequency60fps
    Screen thickness10mm
    Protective gradeIP45
    Control systemDbstar,Linsn,Novastar
    Operating temperature-10°C~+45°C
    Operating humidity10%-95%RH
    Display weight(not including power)13--15kg/sqm
    Installation methodVarieties installation method,specific scheme with the direction

    Details:

    Back of Cabinet
    Front of Cabinet
    Light weight of Cabinet

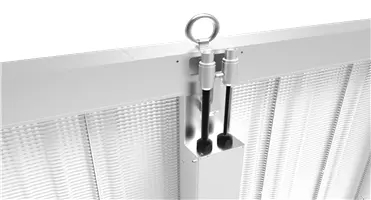

    Fast Lock
    Side of Cabinet

    After-sale service


    1) Warranty:
    Free to solve the quality problems to ensure that equipment normal operation in the warranty period . At any time, we bear all the responsibility, when the problem is from the product itself.
    2) Free maintenance:
    Free maintenance in the warranty period.
    Only charge the cost of raw materials, provide spare parts and maintenance services for the lowest price after the warranty period.
    3) quick response:
    Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
    4) Free support:
    Through telephone or network to provide service support in real time, or with the help of a network for remote debugging support (software), to solve the problem.


    Why Choose BST?


    1) Reply your inquiry in 24 working hours.
    2) Experienced staffs answer all your query in fluent English,Spanish, etc
    3) Customized design is available,OEM & ODM are welcomed.
    4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
    5) Special discount and protection of sales area provided to our distributor.
    6) Warmly welcome your visit in our company if available.
    7) Warranty: 24 months, a little investment for longer warranty time.

    8) More than 15 years' experience.
